2042-2X06G00RB

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 12 PIN,

Deep-Dive with AI

Search across all available documentation for this part.

2042-2X06G00RB

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 12 PIN,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.83
		500	$ 0.69
		1000	$ 0.55
		1500	$ 0.47
		2000	$ 0.42

Description

General part information

2042 Series

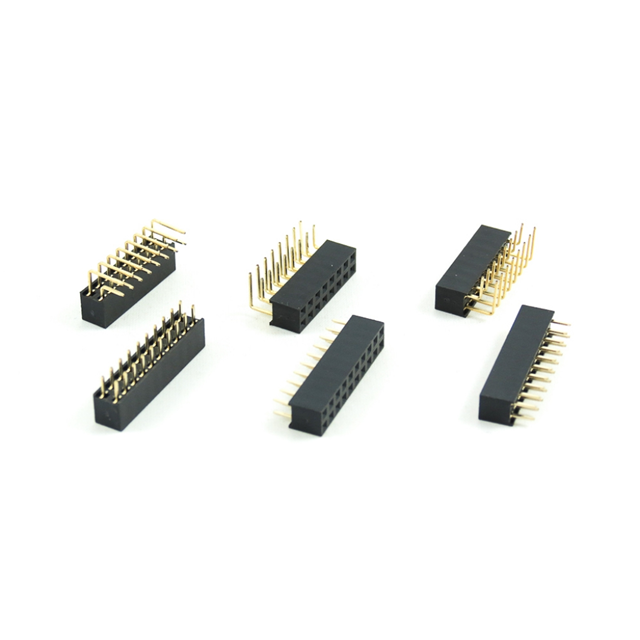

12 Position Socket Connector 0.100" (2.54mm) Through Hole, Right Angle Gold

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2042-2X06G00RB	2042 Series

Connector Type	Socket	Socket
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Height	0.197 in	0.197 - 0.224 in
Insulation Height	5 mm	5 - 5.7 mm
Insulation Height	-	0.098 in
Insulation Height	-	2.5 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Number of Positions	12	4 - 30
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Solder	Solder

2042 Series

PCB SOCKET, DOUBLE ROW, 16 PIN,

Part	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post [x]	Insulation Material	Number of Positions	Current Rating (Amps)	Contact Type	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Mounting Type	Insulation Height [z]	Insulation Height [z]	Number of Positions
Oupiin 2042-2X08G00RA	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.197 in	5 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic	16	2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole, Right Angle
Oupiin 2042-1X05G00RB	1			Copper Alloy	0.1 in	2.54 mm	Flash			UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole, Right Angle	0.098 in	2.5 mm
Oupiin 2042-2X07G00SA	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			14
Oupiin 2042-2X06G00RB	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.197 in	5 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole, Right Angle			12
Oupiin 2042-2X11G00SA	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			22 positions
Oupiin 2042-1X04G00RB	1			Copper Alloy	0.1 in	2.54 mm	Flash			UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole, Right Angle	0.098 in	2.5 mm	4
Oupiin 2042-2X05G00SB	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			10
Oupiin 2042-1X10G00SA	1			Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			10
Oupiin 2042-1X04G00SB	1			Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			4
Oupiin 2042-2X15G00SA	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			30
