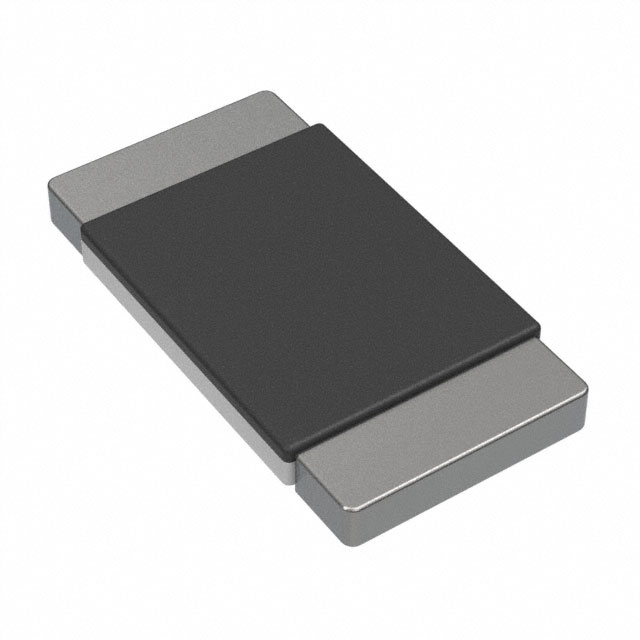

SCMM2512S30M50FW
ActiveDelta Electronics/Cyntec
RES SMD 500 UOHM 1% 3W 2512
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCMM2512S30M50FW
ActiveDelta Electronics/Cyntec
RES SMD 500 UOHM 1% 3W 2512
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCMM2512S30M50FW |
|---|---|
| Composition | Metal Film |
| Features | Current Sense, Pulse Withstanding |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 3 W |
| Resistance | 0.5 mOhms |
| Size / Dimension | 6.35 mm, 3.2 mm |
| Size / Dimension [x] | 0.25 " |
| Size / Dimension [y] | 0.126 " |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 75 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.69 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.69 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 2000 | $ 0.29 | ||
| 6000 | $ 0.28 | |||
| 10000 | $ 0.27 | |||
Description
General part information
SCMM2512S3 Series
0.5 mOhms ±1% 3W Chip Resistor 2512 (6432 Metric) Current Sense, Pulse Withstanding Metal Film
