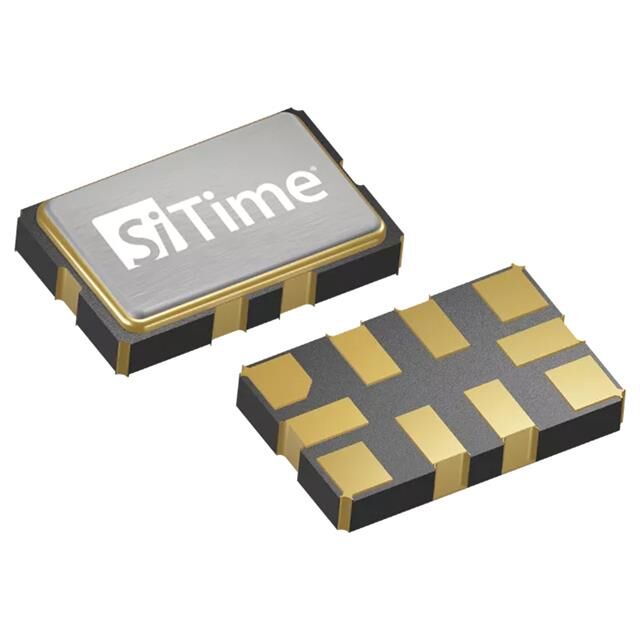

SIT5146AICFK-28E0A16.384000

Active

SiTime

MEMS OSC TCXO 16.384000 MHZ CLIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SIT5146AICFK-28E0A16.384000

Active

SiTime

MEMS OSC TCXO 16.384000 MHZ CLIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	10	$ 135.27

Description

General part information

SIT5146 Series

16.384 MHz TCXO Clipped Sine Wave Oscillator 2.8V Enable/Disable 10-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SIT5146AICFK-28E0A16.384000	SIT5146 Series

Absolute Pull Range (APR)	-	2.25 - 96 ppm
Base Resonator	MEMS	MEMS
Current - Supply (Disable) (Max) [Max]	51 mA	51 mA
Current - Supply (Max)	-	57 mA
Frequency	16.384 MHz	7.3728 - 57.85 MHz
Frequency Stability	500 ppb	1 - 500 ppm
Function	Enable/Disable	Enable/Disable
Height - Seated (Max) [Max] [z]	0.042 in	0.042 in
Height - Seated (Max) [Max] [z]	1.06 mm	1.06 mm
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	70 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Output	Clipped Sine Wave	LVCMOS, Clipped Sine Wave
Package / Case	10-SMD, No Lead	10-SMD, No Lead
Size / Dimension [x]	0.197 in	0.197 in
Size / Dimension [x]	5 mm	5 mm
Size / Dimension [y]	0.126 "	0.126 "
Size / Dimension [y]	3.2 mm	3.2 mm
Supplier Device Package	10-CQFN (5x3.2)	10-CQFN (5x3.2)
Type	TCXO	TCXO, VCTCXO, DCTCXO
Voltage - Supply	2.8 V	2.5 - 3.3 V

SIT5146 Series

MEMS OSC TCXO 50.000000 MHZ LVCM

Part	Voltage - Supply	Function	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Output	Package / Case	Type	Mounting Type	Current - Supply (Disable) (Max) [Max]	Frequency	Frequency Stability	Base Resonator	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Absolute Pull Range (APR)	Current - Supply (Max) [Max]	Supplier Device Package
SiTime SIT5146AI-FA-33E0A50.000000	3.3 V	Enable/Disable	0.197 in	0.126 "	3.2 mm	5 mm	85 °C	-40 °C	LVCMOS	10-SMD, No Lead	TCXO	Surface Mount	51 mA	50 MHz	1 ppm	MEMS	0.042 in	1.06 mm
SiTime SIT5146AI-FD-33N0A40.000000	3.3 V		0.197 in	0.126 "	3.2 mm	5 mm	85 °C	-40 °C	LVCMOS	10-SMD, No Lead	TCXO	Surface Mount		40 MHz	2.5 ppm	MEMS	0.042 in	1.06 mm
SiTime SIT5146AI-FK-33N0A10.000000	3.3 V		0.197 in	0.126 "	3.2 mm	5 mm	85 °C	-40 °C	LVCMOS	10-SMD, No Lead	TCXO	Surface Mount		10 MHz	500 ppb	MEMS	0.042 in	1.06 mm
SiTime SIT5146AE-FA-33VTB55.700000	3.3 V		0.197 in	0.126 "	3.2 mm	5 mm	105 ░C	-40 °C	LVCMOS	10-SMD, No Lead	VCTCXO	Surface Mount		55.7 MHz	1 ppm	MEMS	0.042 in	1.06 mm	2.25 ppm	57 mA
SiTime SIT5146AICFA-33VTB50.000000X	3.3 V		0.197 in	0.126 "	3.2 mm	5 mm	85 °C	-40 °C	Clipped Sine Wave	10-SMD, No Lead	VCTCXO	Surface Mount		50 MHz	1 ppm	MEMS	0.042 in	1.06 mm	2.25 ppm	57 mA
SiTime SIT5146AI-FK-33VTA40.000000	3.3 V		0.197 in	0.126 "	3.2 mm	5 mm	85 °C	-40 °C	LVCMOS	10-SMD, No Lead	VCTCXO	Surface Mount		40 MHz	500 ppb	MEMS	0.042 in	1.06 mm	2.75 ppm	57 mA
SiTime SIT5146AE-FK-33N0B10.000000	3.3 V		0.197 in	0.126 "	3.2 mm	5 mm	105 ░C	-40 °C	LVCMOS	10-SMD, No Lead	TCXO	Surface Mount		10 MHz	500 ppb	MEMS	0.042 in	1.06 mm
SiTime SIT5146AI-FD-33N0A33.333333	3.3 V		0.197 in	0.126 "	3.2 mm	5 mm	85 °C	-40 °C	LVCMOS	10-SMD, No Lead	TCXO	Surface Mount		33.333333 MHz	2.5 ppm	MEMS	0.042 in	1.06 mm
SiTime SIT5146AE-FK-33N0A10.000000	3.3 V		0.197 in	0.126 "	3.2 mm	5 mm	105 ░C	-40 °C	LVCMOS	10-SMD, No Lead	TCXO	Surface Mount		10 MHz	500 ppb	MEMS	0.042 in	1.06 mm
SiTime SIT5146AICFK-28E0A16.384000	2.8 V	Enable/Disable	0.197 in	0.126 "	3.2 mm	5 mm	85 °C	-40 °C	Clipped Sine Wave	10-SMD, No Lead	TCXO	Surface Mount	51 mA	16.384 MHz	500 ppb	MEMS	0.042 in	1.06 mm			10-CQFN (5x3.2)
