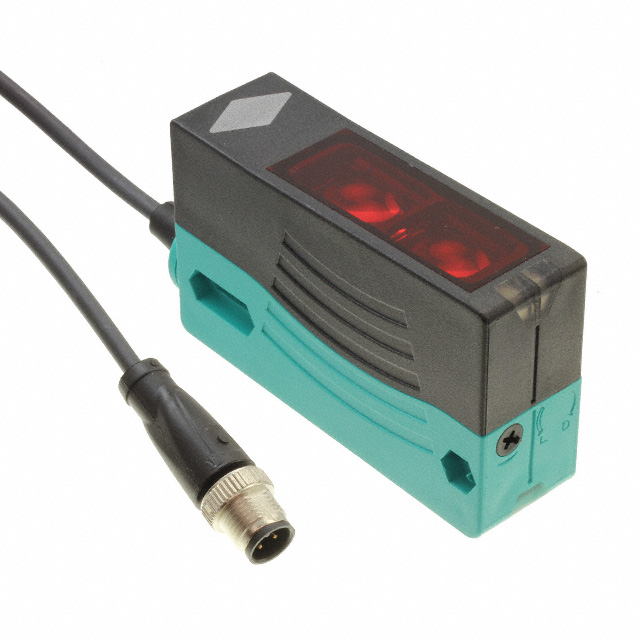

LV28-F1-3057/35/47/115B

Active

PEPPERL+FUCHS

PHOTOELECTRIC (AUTOMATION)

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PHOTOELECTRIC (AUTOMATION)

Technical Specifications

Parameters and characteristics for this part

Specification	LV28-F1-3057/35/47/115B

Adjustment Type	Adjustable
Cable Length	9.06 in
Cable Length	230 mm
Connection Method	Cable with Connector
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Open Collector, Light-ON\Dark-ON
Response Time	20 ms
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Connection Method	Cable Length	Cable Length	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Response Time	Adjustment Type	Sensing Method	Ingress Protection	Light Source	Operating Temperature [Min]	Operating Temperature [Max]
PEPPERL+FUCHS LV28-F1-3057/35/47/115B	Cable with Connector	9.06 in	230 mm	30 VDC	10 VDC	PNP - Open Collector Light-ON\Dark-ON	20 ms	Adjustable	Through-Beam	IP67	Red LED	-40 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 0.000" ~ 2559.055" (0m ~ 65m) PNP - Open Collector, Light-ON\Dark-ON
