MSD75-12

Obsolete

Microsemi Corporation

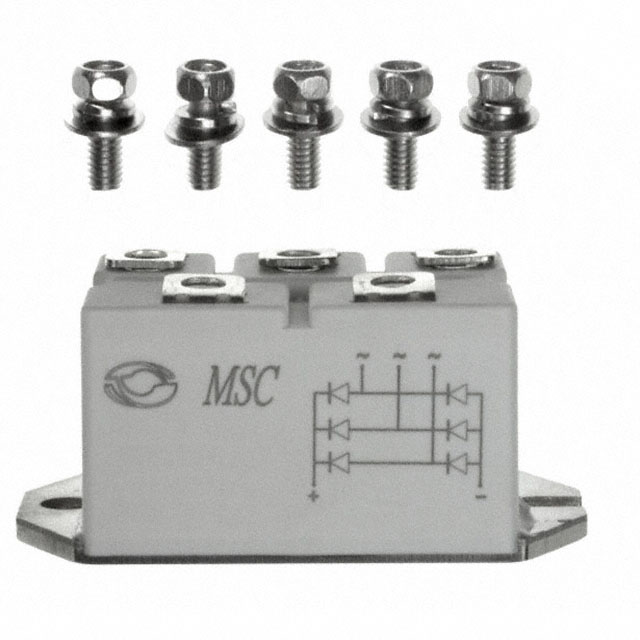

BRIDGE RECT 3PHASE 1.2KV 75A SM2

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

BRIDGE RECT 3PHASE 1.2KV 75A SM2

Technical Specifications

Parameters and characteristics for this part

Specification	MSD75-12

Current - Average Rectified (Io)	75 A
Current - Reverse Leakage @ Vr	300 µA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	M2
Supplier Device Package	SM2
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.6 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Current - Average Rectified (Io)	Diode Type	Technology	Package / Case	Current - Reverse Leakage @ Vr
Microsemi Corporation MSD75-08	150 °C	-40 °C	SM2	1.6 V	800 V	Chassis Mount	75 A	Three Phase	Standard	M2	300 µA
Microsemi Corporation MSD75-12	150 °C	-40 °C	SM2	1.6 V	1.2 kV	Chassis Mount	75 A	Three Phase	Standard	M2	300 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Three Phase Standard 1.2 kV Chassis Mount SM2
