M80-7980205

Active

Harwin Inc.

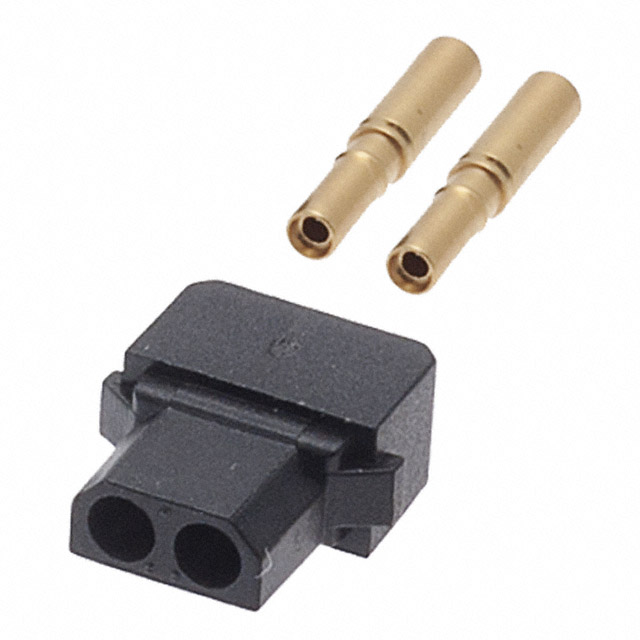

RECTANGULAR CONNECTOR, DATAMATE J-TEK M80 SERIES, 2 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 1 ROW

Search across all available documentation for this part.

Active

Harwin Inc.

RECTANGULAR CONNECTOR, DATAMATE J-TEK M80 SERIES, 2 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 1 ROW

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Type	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Color	Cable Termination	Contact Finish	Fastening Type	Connector Type	Number of Positions
Harwin Inc. M80-7980505	Free Hanging (In-Line)	32 AWG	27.5 AWG	Female Socket	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	1	Black	Crimp	Gold	Locking Ramp	Receptacle
Harwin Inc. M80-7980205	Free Hanging (In-Line)	32 AWG	27.5 AWG	Female Socket	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	1	Black	Crimp	Gold	Locking Ramp	Receptacle	2
Harwin Inc. M80-7980305	Free Hanging (In-Line)	32 AWG	27.5 AWG	Female Socket	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	1	Black	Crimp	Gold	Locking Ramp	Receptacle
Harwin Inc. M80-7980201	Free Hanging (In-Line)	32 AWG	27.5 AWG	Female Socket	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	1	Black	Crimp	Gold	Locking Ramp	Receptacle	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Rectangular Receptacle Connector Crimp Gold 28-32 AWG
