YB01WKW01-2CF24-JB

Active

NKK Switches

INDICATOR PB 24V R/G ILL CLR CAP

YB01WKW01-2CF24-JB

Active

NKK Switches

INDICATOR PB 24V R/G ILL CLR CAP

Description Specifications Series Pricing CAD Documents

Description

General part information

YB01 Series

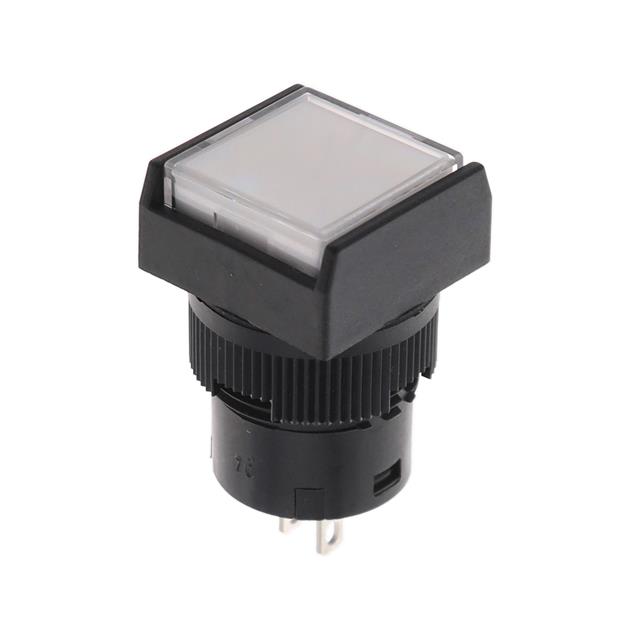

LED Panel Indicator Green, Red Diffused 24V Green, 24V Red 10mA Green, 10mA Red Quick Connect, Solder Lug - 0.110" (2.8mm)

Technical Specifications

Parameters and characteristics for this part

Specification	YB01WKW01-2CF24-JB

Current (Green)	10 mA
Current (Red)	10 mA
Current Colors	Red, Green
Lamp Color	Red, Green
Lens Color	White
Lens Size	15 mm
Lens Style	Flat Top, Square
Lens Transparency	Diffused
Panel Cutout Dimension	0.63 "
Panel Cutout Shape	Round
Ratings	AC
Termination Length	0.11 in
Termination Style	Quick Connect, Solder Lug
Type	LED
Voltage (Green)	24 V
Voltage (Red)	24 V
Voltage Color	Red, Green

YB01 Series

Part	Lens Style	Type	Panel Cutout Shape	Current	Termination Length	Termination Style	Panel Cutout Dimension	Voltage	Lamp Color	Lens Transparency	Ratings	Lens Color	Lens Size	Current Colors	Current (Red)	Current (Green)	Voltage (Red)	Voltage Color	Voltage (Green)
NKK Switches YB01WKW01-12-BB	Flat Top Square	Incandescent	Round	60 mA	0.11 in	Quick Connect Solder Lug	0.63 "	12 VDC	White	Diffused	If (Max) Vf (Typ)	White	15 mm
NKK Switches YB01KW01-12-JF	Flat Top Square	Incandescent	Round	60 mA	0.11 in	Quick Connect Solder Lug	0.63 "	12 VDC	Green	Diffused	AC	Green	15 mm
NKK Switches YB01KW01-6F-JB	Flat Top Square	LED	Round	20 mA	0.11 in	Quick Connect Solder Lug	0.63 "	3.3 V	Green	Diffused	If (Max) Vf (Typ)	White	15 mm
NKK Switches YB01WKW01-5D-JD	Flat Top Square	LED	Round	40 mA	0.11 in	Quick Connect Solder Lug	0.63 "	2 V	Amber	Diffused	If (Max) Vf (Typ)	Amber	15 mm
NKK Switches YB01WKW01-12-CB	Flat Top Square	Incandescent	Round	20 mA	0.11 in	Quick Connect Solder Lug	0.63 "	12 VDC	Red	Diffused	AC	Red	15 mm
NKK Switches YB01WKW01-5F-JF	Flat Top Square	LED	Round	40 mA	0.11 in	Quick Connect Solder Lug	0.63 "	2 V	Green	Clear	If (Max) Vf (Typ)	Green	15 mm
NKK Switches YB01KW01-5C-JB	Flat Top Square	LED	Round	40 mA	0.11 in	Quick Connect Solder Lug	0.63 "	1.9 V	Red	Diffused	If (Max) Vf (Typ)	White	15 mm
NKK Switches YB01WKW01-6G-JB	Flat Top Square	LED	Round	30 mA	0.11 in	Quick Connect Solder Lug	0.63 "	3.3 V	Blue	Diffused	If (Max) Vf (Typ)	White	15 mm
NKK Switches YB01KW01-5D12-JB	Flat Top Square	LED	Round	20 mA	0.11 in	Quick Connect Solder Lug	0.63 "	12 VDC	Amber	Clear	If (Max) Vf (Typ)	White	15 mm
NKK Switches YB01WKW01-2CF24-JB	Flat Top Square	LED	Round		0.11 in	Quick Connect Solder Lug	0.63 "		Green Red	Diffused	AC	White	15 mm	Green Red	10 mA	10 mA	24 V	Green Red	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

YB01WKW01-2CF24-JB | Datasheet
