22SPW36NA

Obsolete

Essentra Access Solutions

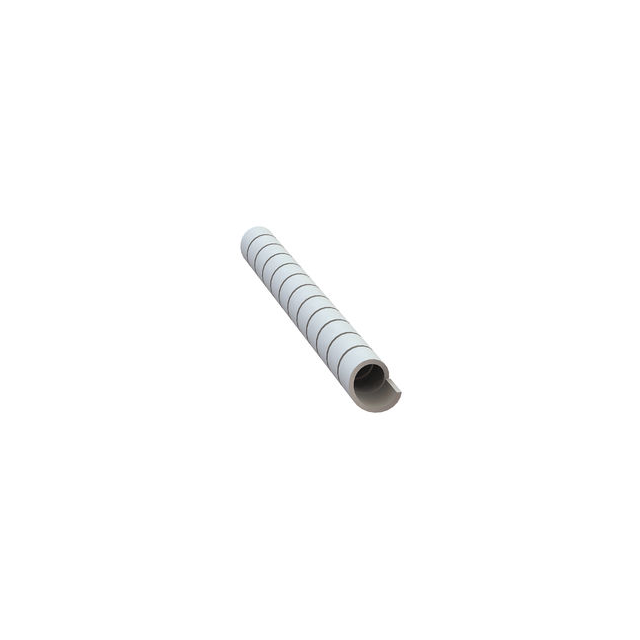

SPIRAL WRAP, 0.375 ", 9.52 MM, POLYETHYLENE, NATURAL, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

22SPW36NA

Obsolete

Essentra Access Solutions

SPIRAL WRAP, 0.375 ", 9.52 MM, POLYETHYLENE, NATURAL, 100 FT, 30.48 M

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	22SPW36NA

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded [diameter]	2 in
Diameter - Inside, Expanded [diameter]	50.8 mm
Diameter - Inside, Non-Expanded [diameter]	0.187 in
Diameter - Inside, Non-Expanded [diameter]	4.75 mm
Diameter - Outside, Non-Expanded [diameter]	0.375 "
Diameter - Outside, Non-Expanded [diameter]	9.52 mm
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE)
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	0.04 in
Wall Thickness	1.02 mm

22SPW Series

Part	Abrasion Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type Attributes	Type	Wall Thickness	Wall Thickness	Length	Length	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material	Color	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Environment Protection	Diameter - Inside, Expanded	Wall Thickness [custom]	Wall Thickness [custom]
Essentra Access Solutions 22SPW49NA	Abrasion Resistant	0.375 in	9.53 mm	Harness	Spiral Wrap	0.04 in	1.02 mm	100 ft	30.48 m	4 in	101.6 mm	Polyethylene (PE)	Natural	0.5 in	12.7 mm
Essentra Access Solutions 22SPW50BK	Abrasion Resistant	0.375 in	9.53 mm	Harness	Spiral Wrap	0.062 in	1.57 mm	100 ft	30.48 m	4 in	101.6 mm	Polyethylene (PE)	Black	0.5 in	12.7 mm	UV Resistant
Essentra Access Solutions 22SPW36NA	Abrasion Resistant	0.187 in	4.75 mm	Harness	Spiral Wrap	0.04 in	1.02 mm	100 ft	30.48 m	2 in	50.8 mm	Polyethylene (PE)	Natural	0.375 "	9.52 mm
Essentra Access Solutions 22SPW11BK	Abrasion Resistant	1 in	25.4 mm	Harness	Spiral Wrap	0.095 in	2.41 mm	100 ft	30.48 m	7 in	177.8 mm	Polyethylene (PE)	Black	1 "	25.4 mm	UV Resistant
Essentra Access Solutions 22SPW62NA	Abrasion Resistant	0.625 in	15.88 mm	Harness	Spiral Wrap	0.062 in	1.57 mm	100 ft	30.48 m	4.5 "	114.3 mm	Polyethylene (PE)	Natural	0.625 in	15.88 mm
Essentra Access Solutions 22SPW75BK	Abrasion Resistant	0.75 in	19.05 mm	Harness	Spiral Wrap	0.065 in	1.65 mm	100 ft	30.48 m	5 in	127 mm	Polyethylene (PE)	Black	0.75 in	19.05 mm	UV Resistant
Essentra Access Solutions 22SPW38NA	Abrasion Resistant	0.313 in	7.94 mm	Harness	Spiral Wrap	0.062 in	1.57 mm	100 ft	30.48 m	3 in		Polyethylene (PE)	Natural	0.375 "	9.52 mm		76.2 mm
Essentra Access Solutions 22SPW37NA	Abrasion Resistant	0.313 in	7.94 mm	Harness	Spiral Wrap			100 ft	30.48 m	3 in		Polyethylene (PE)	Natural	0.375 "	9.52 mm		76.2 mm	1.32 mm	0.052 in
Essentra Access Solutions 22SPW49BK	Abrasion Resistant	0.375 in	9.53 mm	Harness	Spiral Wrap	0.04 in	1.02 mm	100 ft	30.48 m	4 in	101.6 mm	Polyethylene (PE)	Black	0.5 in	12.7 mm	UV Resistant
Essentra Access Solutions 22SPW48BK	Abrasion Resistant	0.375 in	9.53 mm	Harness	Spiral Wrap			100 ft	30.48 m	3 in		Polyethylene (PE)	Black	0.5 in	12.7 mm	UV Resistant	76.2 mm	0.76 mm	0.03 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Spool of 100	1	$ 73.03
		5	$ 66.02
		10	$ 64.74
		25	$ 63.15
		50	$ 59.96
		100	$ 53.90
		250	$ 49.75

Description

General part information

22SPW Series

Spiral Wrap 0.375" (9.52mm) X 100' (30.48m) Natural

Documents

Technical documentation and resources

No documents available
