A222T20V16

Active

Nicomatic

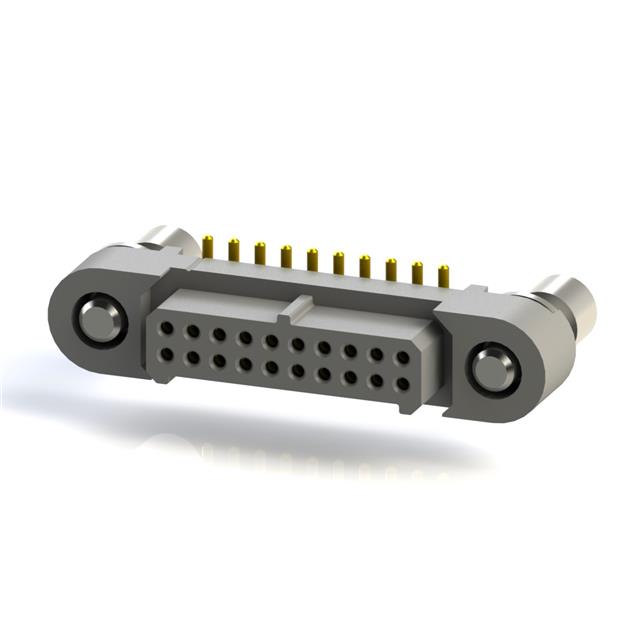

FEM. 20POS STRAIGHT SMT 1.00MM

Search across all available documentation for this part.

Active

Nicomatic

FEM. 20POS STRAIGHT SMT 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	A222T20V16

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Polarizing Key, Mounting Flange, Jackscrews, Mating Flange
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Termination	Solder
Voltage Rating	600 VAC

FEM. 20POS STRAIGHT SMT 1.00MM

Part	Number of Positions	Insulation Material	Number of Positions Loaded	Contact Shape	Contact Type	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Pitch - Mating	Pitch - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination	Contact Finish - Post	Features	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Finish - Mating	Fastening Type	Number of Rows	Material Flammability Rating	Contact Material
Nicomatic A222T20V16	20	Liquid Crystal Polymer (LCP)	All	Circular	Female Socket	0.157 in	4 mm	0.15 µm	5.9 µin	Black	0.15 µm	5.9 µin	600 VAC	0.039 in	1 mm	Surface Mount	-65 ░C	200 °C	2.5 A	Solder	Gold	Jackscrews, Mating Flange, Mounting Flange, Polarizing Key	0.039 "	1 mm	Receptacle	Gold	Push-Pull	2	UL94 V-0	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
