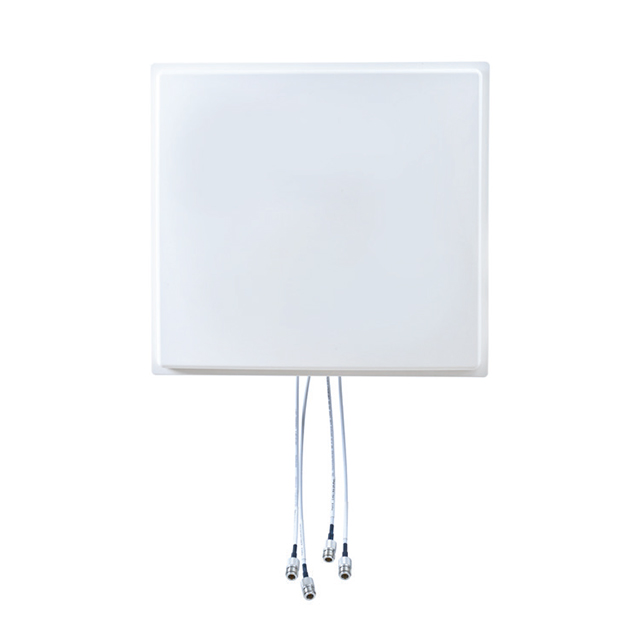

PDQ244915-91NF
ActiveTE Connectivity Raychem Cable Protection
SECTR,34IN,NF 2400-5950MHZ,10DBI
Deep-Dive with AI
Search across all available documentation for this part.
PDQ244915-91NF
ActiveTE Connectivity Raychem Cable Protection
SECTR,34IN,NF 2400-5950MHZ,10DBI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PDQ244915-91NF |
|---|---|
| Antenna Type | Panel |
| Applications | Wi-Fi |
| Features | 910 mm |
| Features | Cable |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.5 GHz, 5.95 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Gain | 15 dB, 11.1 dBi |
| Height (Max) [Max] | 35.8 mm |
| Height (Max) [Max] | 1.409 in |
| Ingress Protection | IP67 |
| Mounting Type | Bracket Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | WiFi |
| Termination | N Type Female (4) |
| VSWR [Max] | 2 |
| VSWR [Min] | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2 | $ 290.62 | |
| 10 | $ 278.33 | |||
| 25 | $ 272.20 | |||
Description
General part information
PDQ244915 Series
Panel Antenna, Dual Band, Wi-Fi, External Mount, Pole/Mast/Bracket Mount, N-type, Directional, Multiple Ports, > 6 dBi Peak Gain
