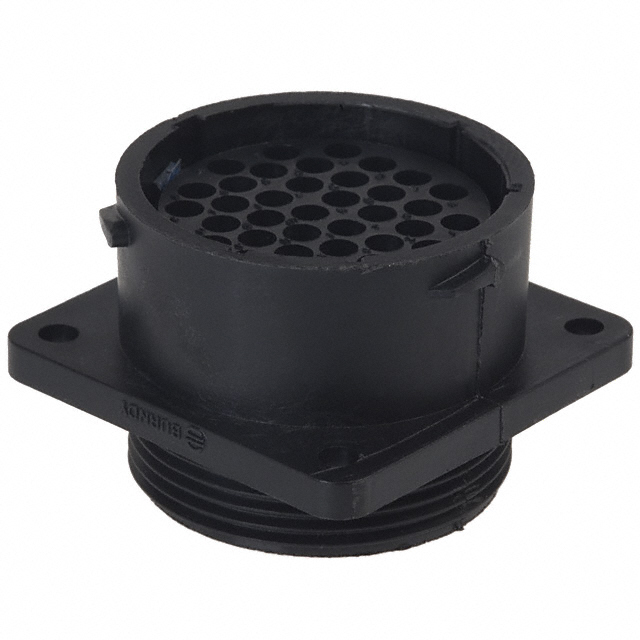

UTP02235S
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSG FMALE 35POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
UTP02235S
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSG FMALE 35POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UTP02235S |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 35 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | N |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 22 |
| Shielding | Unshielded |
| Type | For Female Sockets |
UTP02 Series
| Part | Contact Shape | Orientation | Fastening Type | Contact Size | Housing Color | Material Flammability Rating | Shielding | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Type | Note | Mounting Feature | Number of Positions | Contact Type | Contact Size | Shell Size - Insert | Contact Size | Contact Size | Ingress Protection | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Circular | N | Bayonet Lock | 16 | Black | UL94 V-0 | Unshielded | Receptacle Housing | 125 °C | -25 °C | 22 | 35 | For Female Sockets | Contacts Not Included | Flange | 35 | Crimp | ||||||
Souriau-Sunbank by Eaton | Circular | N | Bayonet Lock | Black | UL94 V-0 | Unshielded | Receptacle Housing | 125 °C | -25 °C | For Male Pins | Contacts Not Included | Flange | 11 | Crimp | 16 (7) 8 (4) | 24-11 | |||||||
Souriau-Sunbank by Eaton | Circular | N | Bayonet Lock | 16 | Black | UL94 V-0 | Unshielded | Receptacle Housing | 125 °C | -25 °C | 24 | 48 | For Female Sockets | Contacts Not Included | Flange | 48 | Crimp | ||||||
Souriau-Sunbank by Eaton | Circular | N | Bayonet Lock | Black | UL94 V-0 | Unshielded | Receptacle Housing | 125 °C | -25 °C | For Male Pins | Contacts Not Included | Flange | 9 | Crimp | 24-7 | 8 | 16 | ||||||
Souriau-Sunbank by Eaton | Circular | N | Bayonet Lock | 16 | Black | UL94 V-0 | Unshielded | Receptacle Housing | 125 °C | -25 °C | 20 | 28 | For Female Sockets | Contacts Not Included | Flange | 28 | Crimp | ||||||
Souriau-Sunbank by Eaton | Circular | N | Bayonet Lock | Black | UL94 V-0 | Unshielded | Receptacle Housing | 125 °C | -25 °C | For Male Pins | Contacts Not Included | Flange | 11 | Crimp | 16 (7) 8 (4) | 24-11 | IP65 - Dust Tight Water Resistant | ||||||
Souriau-Sunbank by Eaton | Circular | N | Bayonet Lock | Black | UL94 V-0 | Unshielded | Receptacle Housing | 125 °C | -25 °C | For Female Sockets | Contacts Not Included | Flange | 8 9 | Crimp | 24-7 | 8 | 16 | PE | |||||
Souriau-Sunbank by Eaton | Circular | N | Bayonet Lock | 16 | Black | UL94 V-0 | Unshielded | Receptacle Housing | 125 °C | -25 °C | 22 | 35 | For Male Pins | Contacts Not Included | Flange | 35 | Crimp | ||||||
Souriau-Sunbank by Eaton | Circular | N | Bayonet Lock | 16 | Black | UL94 V-0 | Unshielded | Receptacle Housing | 125 °C | -25 °C | 24 | 48 | For Male Pins | Contacts Not Included | Flange | 48 | Crimp | ||||||
Souriau-Sunbank by Eaton | Circular | N | Bayonet Lock | 16 | Black | UL94 V-0 | Unshielded | Receptacle Housing | 125 °C | -25 °C | 20 | 28 | For Male Pins | Contacts Not Included | Flange | 28 | Crimp | IP65 - Dust Tight Water Resistant |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 19.02 | |
Description
General part information
UTP02 Series
35 Position Circular Connector Receptacle Housing Panel Mount
Documents
Technical documentation and resources
No documents available
