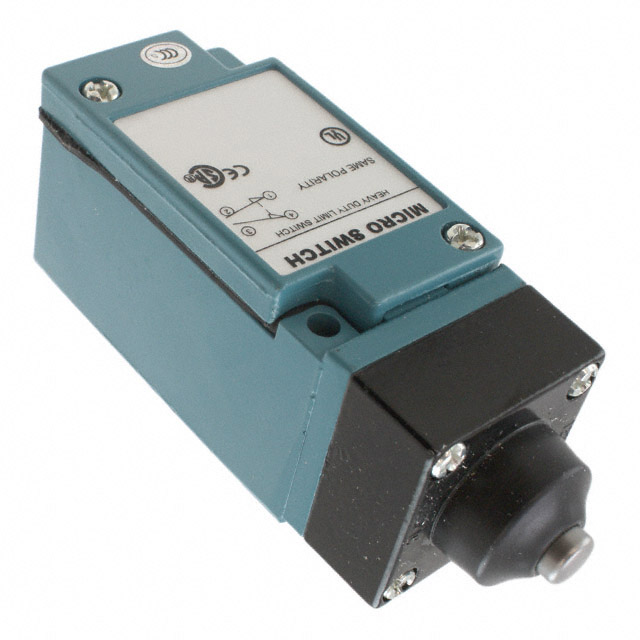

LSC3K
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 10A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LSC3K
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 10A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LSC3K | - Series |
|---|---|---|
| - | - | |
| Actuator Length | - | 8.1 - 22.35 mm |
| Actuator Marking | - | No Marking, Varies by Cap |
| Actuator Type | Round (Pin Plunger) | Standard Round, Round (Pin Plunger), Concave (Curved), Push-Pull Plunger, Overtravel Plunger, Side Roller Plunger, Side Rotary, Adjustable Roller, Actuator Arm, Cap Required, Side Rotary - No Lever, Adjustable Plunger, Roller, Lever, Side Plunger, Adjustable Side Plunger, Cross Roller Plunger, Rod, Spring, Roller Plunger, Side Rotary, Lever, Straight, Top Rotary - No Lever, Simulated Roller |
| Approval Agency | - | CE, CSA, UKCA, UL |
| Bushing Thread | - | 15/32-32, 1/4-40 |
| Circuit | SPDT (DB/DM) | 6PDT, 4PDT, SPDT, 3PDT, SPDT (DB/DM), SPDT x 2, DPST, DPDT (DB/DM), DPDT, SPST-NO, DPST-NO/NC, DPDT x 2, SPDT x 4, DPST-NC, DPST-NO, Open Collector, Digital, SPST |
| Color - Actuator/Cap | - | Clear, White |
| Current Rating (Amps) | 10 A, 800 mA | 1 - 800 A |
| Differential Travel | 0.016 " | 0.0003 - 40 in |
| Differential Travel | 0.4 mm | 0.008 - 4 mm |
| Electrical Life | - | 6000 - 50000 Cycles |
| Features | - | Sealed, Status Indicator, Sequence Action, Explosion Proof, Gravity Return, Back Mounted, Steel Roller, Center Neutral, Steel Plunger |
| Features | - | 6 ft |
| Illumination | - | Non-Illuminated |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof, IP66, Waterproof |
| Mechanical Life | - | 80000 - 20000000 Cycles |
| Mounting Type | Chassis Mount | Panel Mount, Snap-In, Flange, Chassis Mount |
| Operating Force | 1814 gf | 0.68 - 2720 gf |
| Operating Force | - | 113 - 2722 gf |
| Operating Force | - | 227 - 5443 gf |
| Operating Position | - | 0.355 - 20 in |
| Operating Position | - | 9 mm |
| Operating Position | - | 5.2 - 47.2 mm |
| Operating Position | - | 0.203 - 1.859 " |
| Operating Temperature | - | -10 °C |
| Operating Temperature | - | 158 °F |
| Operating Temperature [Max] | 93 °C | 70 - 260 °C |
| Operating Temperature [Min] | -12 °C | -184 - -1 °C |
| Overtravel | 4.8 mm | 0.076 - 6.35 mm |
| Overtravel | 0.19 in | 0.003 - 110 in |
| Panel Cutout Dimensions | - | 6.6 - 12.4 mm |
| Panel Cutout Dimensions | - | 23.9 mm |
| Panel Cutout Dimensions | - | 38.4 mm |
| Pretravel | 0.071 in | 0.012 - 65 in |
| Pretravel | 1.8 mm | 0.125 - 6.35 mm |
| Pretravel | - | 3.2 mm |
| Release Force | - | 8.64 - 2268 gf |
| Release Force | - | 113 gf |
| Release Force | - | 340 gf |
| Switch Function | On-Mom | On-On, On-Mom, Mom-On-Mom, On-Off, Mom-Off-Mom, Off-Mom, On-Off-On, On-Off-Mom |
| Termination Style | Screw Terminal | Solder Lug, Quick Connect - 0.187" (4.7mm), Screw Terminal, Plug In, Wire Leads, Solder Turret, Cable Leads, Quick Connect - 0.058 in (Round), Quick Connect - 0.250" (6.3mm), Connector |
| Voltage Rating - AC | 120 V | 115 - 250 V |
| Voltage Rating - DC | 115 V | 24 - 125 V |
- Series
SWITCH TOGGLE 6PDT 2A 125V
...
| Part | Voltage Rating - DC | Voltage Rating - AC | Current Rating (Amps) | Bushing Thread | Switch Function | Actuator Length [x] | Circuit | Panel Cutout Dimensions [diameter] | Actuator Type | Termination Style | Illumination | Release Force | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Operating Position [custom] | Operating Position [custom] | Operating Force | Mounting Type | Differential Travel | Differential Travel | Overtravel | Overtravel | Actuator Marking | Approval Agency | Features | Color - Actuator/Cap | Pretravel | Pretravel | Operating Force [Min] | Operating Force [Max] | Operating Position | Operating Position | Features | Ingress Protection | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Electrical Life | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Release Force [Min] | Release Force [Max] | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions 222AT6 | 28 V | 125 V | 2 A, 4 A | 15/32-32 | On-On | 19.76 mm | 6PDT | 12.4 mm | Standard Round | Solder Lug | Non-Illuminated | ||||||||||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions 23AT6 | 30 V | 125 V | 5 A | 15/32-32 | On-Mom | 17.53 mm | 4PDT | 12.4 mm | Standard Round | Solder Lug | Non-Illuminated | ||||||||||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions 1DM38 | 125 V | 10 A | On-Mom | SPDT | Round (Pin Plunger) | Quick Connect - 0.187" (4.7mm) | 85 gf | 1000000 Cycles | 82 °C | -37 °C | 0.355 in | 9 mm | 425 gf | Panel Mount, Snap-In | 1.1 mm | 0.045 in | 0.235 in | 6 mm | |||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions 23AT2 | 30 V | 125 V | 5 A | 15/32-32 | On-On | 17.53 mm | 3PDT | 12.4 mm | Standard Round | Solder Lug | Non-Illuminated | ||||||||||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions 4TP1-70 | 125 V | 10 A | Mom-On-Mom | 4PDT | Concave (Curved) | Screw Terminal | 71 °C | -54 °C | Flange, Panel Mount | No Marking | CE, CSA, UKCA, UL | Sealed | Clear | ||||||||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions LSC3K | 115 V | 120 V | 10 A, 800 mA | On-Mom | SPDT (DB/DM) | Round (Pin Plunger) | Screw Terminal | 93 °C | -12 °C | 1814 gf | Chassis Mount | 0.4 mm | 0.016 " | 0.19 in | 4.8 mm | 0.071 in | 1.8 mm | ||||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions 4AC60 | 125 VDC | 125 V | 15 A, 500 mA | On-Mom | SPDT x 2 | Push-Pull Plunger | Screw Terminal | 85 °C | -55 °C | Chassis Mount | 0.125 in | 3.2 mm | 0.188 in | 4.8 mm | |||||||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions HLS-D | |||||||||||||||||||||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions BA-2RB | 125 VDC | 125 V | 20 A, 500 mA | On-Mom | SPDT | Overtravel Plunger | Solder Lug | 283 gf | 20000000 Cycles | 85 °C | -55 °C | 0.05 mm | 0.002 in | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | 397 gf | 624 gf | 26.2 mm | 1.03 " | ||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions LSF1A | 115 V | 120 V | 10 A, 800 mA | On-Mom | SPDT (DB/DM) | Side Roller Plunger | Plug In | 93 °C | -12 °C | 2720 gf | Chassis Mount | 0.6 mm | 0.025 in | 0.19 in | 4.8 mm | 0.1 in | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 282.06 | |
Description
General part information
- Series
Switch SPDT (DB/DM) Chassis Mount
