801-43-063-10-002000

Active

Mill-Max Manufacturing Corp.

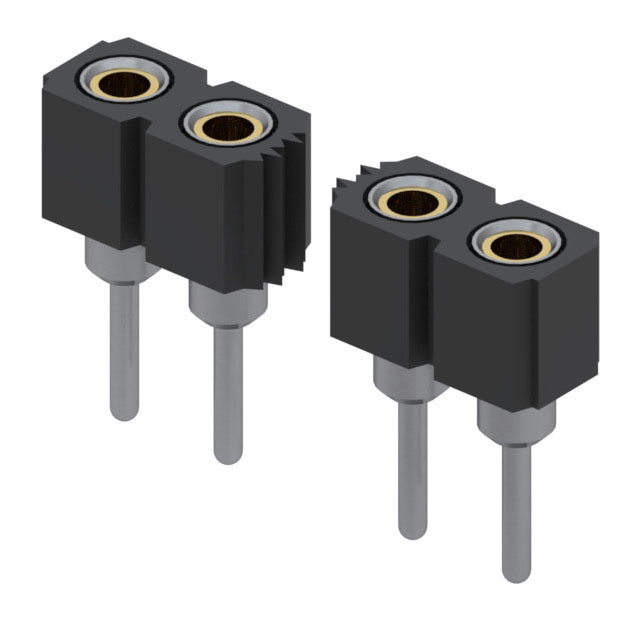

CONN RCPT 63POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

801-43-063-10-002000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 63POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	801-43-063-10-002000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	63
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

801-43 Series

...

Part	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post [x]	Insulation Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Type	Fastening Type	Insulation Material	Termination	Material Flammability Rating	Mounting Type	Contact Finish - Post	Current Rating (Amps)	Contact Shape	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 801-43-024-20-001000	0.1 in	2.54 mm	200 µin	5.08 µm	30 Áin	0.76 Ám	3.2 mm	0.126 in	Black	Beryllium Copper	-55 °C	125 °C	1	Female Socket	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	Through Hole Right Angle	Tin	4.5 A	Circular	24	Receptacle	0.1 in	2.54 mm	All	Gold
Mill-Max Manufacturing Corp. 801-43-023-10-001000			200 µin	5.08 µm	30 Áin	0.76 Ám	3 mm		Black	Beryllium Copper	-55 °C	125 °C	1	Female Socket	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	Through Hole	Tin	4.5 A	Circular	23	Receptacle	0.1 in	2.54 mm	All	Gold	0.118 in	7 mm	0.276 in
Mill-Max Manufacturing Corp. 801-43-036-10-001000			200 µin	5.08 µm	30 Áin	0.76 Ám	3 mm		Black	Beryllium Copper	-55 °C	125 °C	1	Female Socket	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	Through Hole	Tin	4.5 A	Circular	36	Receptacle	0.1 in	2.54 mm	All	Gold	0.118 in	7 mm	0.276 in
Mill-Max Manufacturing Corp. 801-43-031-10-013000			200 µin	5.08 µm	30 Áin	0.76 Ám		0.125 in	Black	Beryllium Copper	-55 °C	125 °C	1	Female Socket	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	Through Hole	Tin	4.5 A	Circular	31	Receptacle	0.1 in	2.54 mm	All	Gold		4.2 mm	0.165 in	3.18 mm
Mill-Max Manufacturing Corp. 801-43-017-10-002000			200 µin	5.08 µm	30 Áin	0.76 Ám		0.125 in	Black	Beryllium Copper	-55 °C	125 °C	1	Female Socket	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	Through Hole	Tin	4.5 A	Circular		Receptacle	0.1 in	2.54 mm	All	Gold		4.2 mm	0.165 in	3.18 mm
Mill-Max Manufacturing Corp. 801-43-063-10-002000			200 µin	5.08 µm	30 Áin	0.76 Ám		0.125 in	Black	Beryllium Copper	-55 °C	125 °C	1	Female Socket	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	Through Hole	Tin	4.5 A	Circular	63	Receptacle	0.1 in	2.54 mm	All	Gold		4.2 mm	0.165 in	3.18 mm
Mill-Max Manufacturing Corp. 801-43-056-10-003000			200 µin	5.08 µm	30 Áin	0.76 Ám		0.125 in	Black	Beryllium Copper	-55 °C	125 °C	1	Female Socket	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	Through Hole	Tin	4.5 A	Circular	56	Receptacle	0.1 in	2.54 mm	All	Gold		4.2 mm	0.165 in	3.18 mm
Mill-Max Manufacturing Corp. 801-43-059-10-002000			200 µin	5.08 µm	30 Áin	0.76 Ám		0.125 in	Black	Beryllium Copper	-55 °C	125 °C	1	Female Socket	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	Through Hole	Tin	4.5 A	Circular	59	Receptacle	0.1 in	2.54 mm	All	Gold		4.2 mm	0.165 in	3.18 mm
Mill-Max Manufacturing Corp. 801-43-038-10-001000			200 µin	5.08 µm	30 Áin	0.76 Ám	3 mm		Black	Beryllium Copper	-55 °C	125 °C	1	Female Socket	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	Through Hole	Tin	4.5 A	Circular	38	Receptacle	0.1 in	2.54 mm	All	Gold	0.118 in	7 mm	0.276 in
Mill-Max Manufacturing Corp. 801-43-036-10-012000			200 µin	5.08 µm	30 Áin	0.76 Ám		0.125 in	Black	Beryllium Copper	-55 °C	125 °C	1	Female Socket	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	Through Hole	Tin	4.5 A	Circular	36	Receptacle	0.1 in	2.54 mm	All	Gold		4.2 mm	0.165 in	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.88
		10	$ 11.44
		100	$ 8.93
		500	$ 7.60
		1000	$ 7.12

Description

General part information

801-43 Series

63 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
