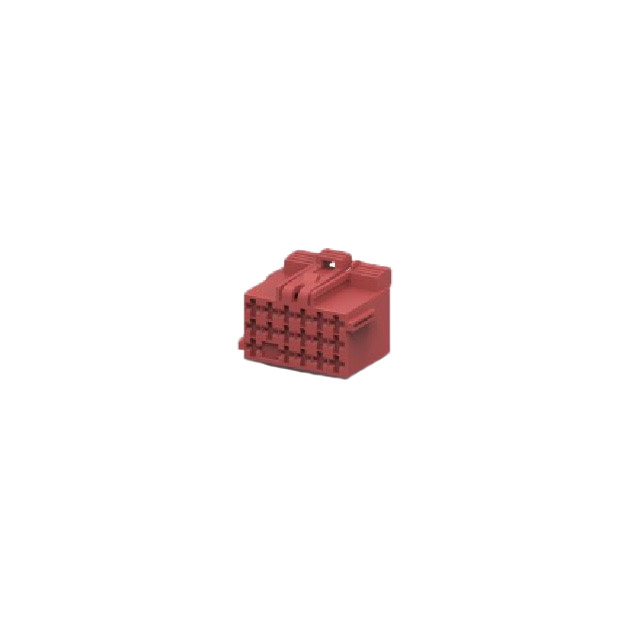

1355204-2

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 17POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 17POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	1355204-2

Color	Red
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	3
Pitch [x]	5 mm
Pitch [x]	0.197 in
Row Spacing	5.51 mm
Row Spacing [x]	0.217 in

Part	Pitch [x]	Pitch [x]	Number of Rows	Color	Contact Termination	Connector Type	Contact Type	Mounting Type	Note	Fastening Type	Insulation Material	Row Spacing [x]	Row Spacing
TE Connectivity Raychem Cable Protection 1355204-2	5 mm	0.197 in	3	Red	Crimp	Receptacle	Female Socket	Free Hanging (In-Line)	Contacts Not Included	Latch Lock	Polybutylene Terephthalate (PBT) Glass Filled	0.217 in	5.51 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Rectangular Connectors - Housings Receptacle Red 0.197" (5.00mm)
