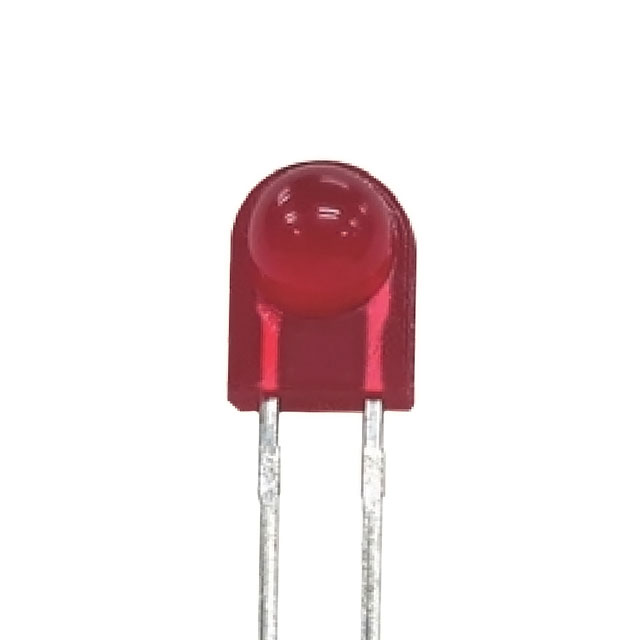

XSUR92D
ActiveSunLED
LED RED DIFF RADIAL LEAD T/H R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XSUR92D
ActiveSunLED
LED RED DIFF RADIAL LEAD T/H R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XSUR92D |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 6.35 mm |
| Lens Color | Red |
| Lens Size [diameter] | 3.6 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 9 mcd |
| Mounting Type | Through Hole, Right Angle |
| Package / Case | Radial |
| Supplier Device Package | Radial Lead |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 617 nm |
| Wavelength - Peak | 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.55 | |
| 10 | $ 0.36 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.19 | |||
| 5000 | $ 0.16 | |||
| 10000 | $ 0.15 | |||
Description
General part information
XSUR92 Series
Red 617nm LED Indication - Discrete 2V Radial
