SI53154-EVB

Active

Skyworks Solutions Inc.

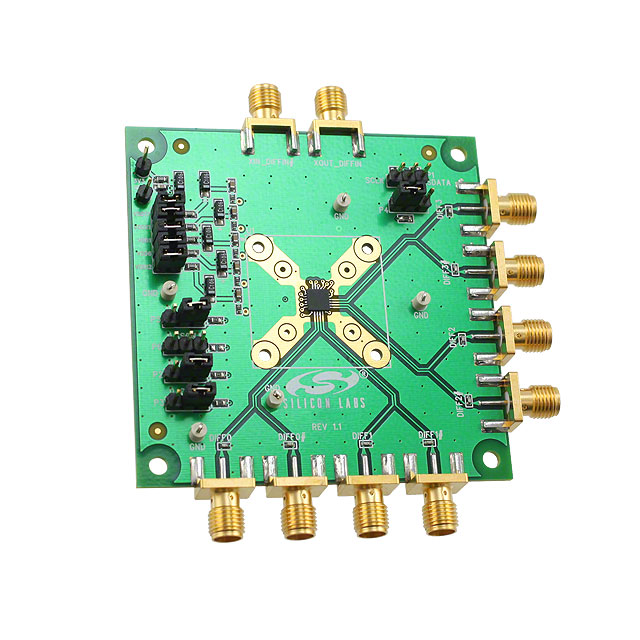

SI53154 CLOCK BUFFER AND DRIVER EVALUATION BOARD

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

SI53154 CLOCK BUFFER AND DRIVER EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	SI53154-EVB

Contents	Board(s)
Embedded	False
Function	Clock Buffer
Primary Attributes	PCI Express (PCIe) Gen1, Gen2 and Gen3 Compliant
Secondary Attributes	4 Ports
Supplied Contents	Board(s)
Type	Timing
Utilized IC / Part	SI53154

Part	Contents	Type	Secondary Attributes	Utilized IC / Part	Primary Attributes	Function	Embedded	Supplied Contents	Number of Circuits	Input	Output	Supplier Device Package	Main Purpose	PLL	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output	Mounting Type
Skyworks Solutions Inc. SI53154-EVB	Board(s)	Timing	4 Ports	SI53154	PCI Express (PCIe) Gen1 Gen2 and Gen3 Compliant	Clock Buffer		Board(s)
Skyworks Solutions Inc. SI53154-A11AGM									1	Clock	Clock	24-QFN (4x4)	PCI Express (PCIe)		24-WFQFN Exposed Pad	3.465 V	3.135 V			210 MHz	85 °C	-40 °C	1:4	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 81.52
Digikey	Box	1	$ 94.69

General part information

SI53154 - Clock Buffer Timing Evaluation Board
