Technical Specifications
Parameters and characteristics for this part
| Specification | STM32H7B3I-EVAL |
|---|---|
| Contents | Board(s), LCD |
| Core Processor | ARM® Cortex®-M7 |
| Mounting Type | Fixed |
| Suggested Programming Environment | Keil MDK, GNU GCC, STM32Cube, IAR EW |
| Type | MCU 32-Bit |
| Utilized IC / Part | STM32H7B3LI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 334.88 | |
Description
General part information
STM32H7B3I-EVAL Series

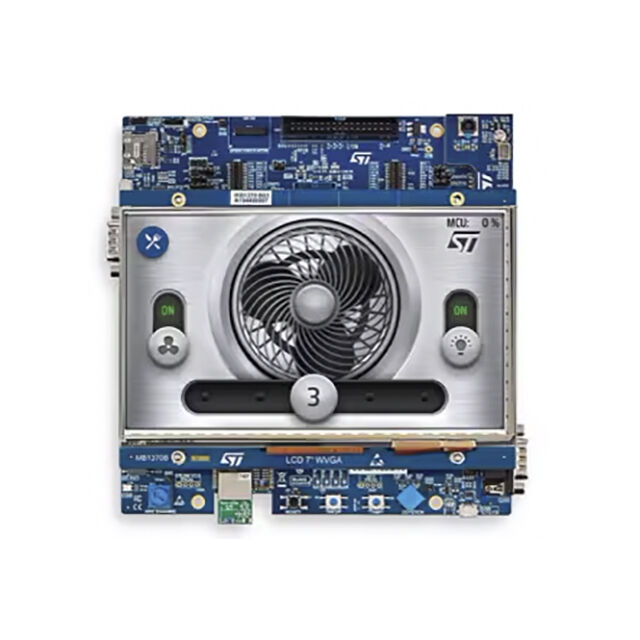

The STM32H7B3I-EVAL Evaluation board is a complete demonstration and development platform for the Arm®Cortex®-M7-based STM32H7B3LIH6Q microcontroller. The STM32H7B3I-EVAL Evaluation board provides access to all the STM32 peripherals for user applications and includes an embedded STLINK-V3E debugger/programmer.
The full range of the STM32H7B3I-EVAL hardware features helps to develop applications and evaluate all the peripherals, such as USB OTG HS and FS, CAN FD, USART, ADC and DAC, digital microphones, SRAM, SDRAM, NOR flash memory, Octo‑SPI flash memory with OTFDEC, microSD™ 3.0 card, 7" 800x480 WVGA TFT color RGB LCD with capacitive touch panel (I2C), and DCMI camera.
The expansion connectors provide an easy way to add specialized features, while ETM trace is supported through external probes.
