Q-2U0010001003M

Active

Amphenol Custom Cable

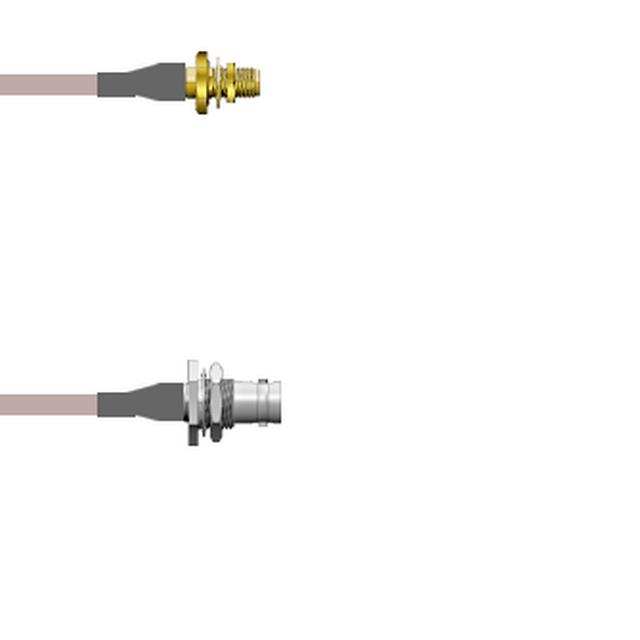

CBL ASSY BNC-SMA JACK-JACK 9.8'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-JACK 9.8'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2U0010001003M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	BNC to SMA

Part	Cable Type	1st Contact Gender	Overall Impedance	1st Connector Mounting Type	1st Connector Mounting Feature	Style	2nd Contact Gender	Frequency - Max [Max]	Cable Impedance	Features	2nd Connector	Color	1st Connector	2nd Connector Mounting Type	2nd Connector Mounting Feature	Length	Length	Length	Connector Impedance
Amphenol Custom Cable Q-2U0010001003M	RG-178	Female	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	BNC to SMA	Female	3 GHz	50 Ohms	Shielded	SMA Jack	Copper	BNC Jack	Panel Mount	Bulkhead - Front Side Nut	3 m	118.1 in	9.8 '	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMA RG-178 118.1" (3.0m) 9.8'

Technical documentation and resources

No documents available
