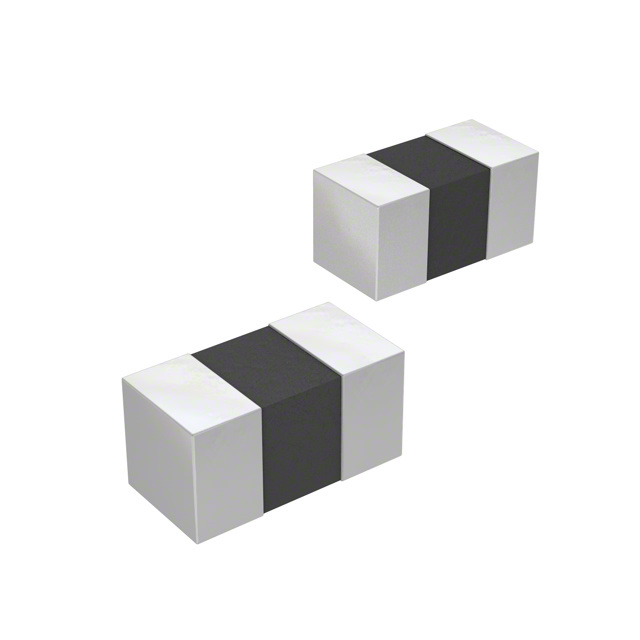

MU1608-471Y
ActiveBourns Inc.
FERRITE BEAD 470 OHM 0603 1LN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MU1608-471Y
ActiveBourns Inc.
FERRITE BEAD 470 OHM 0603 1LN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MU1608-471Y |
|---|---|
| Current Rating (Max) [Max] | 350 mA |
| DC Resistance (DCR) (Max) [Max] | 450 mOhm |
| Filter Type | Signal Line, Power |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Impedance @ Frequency | 470 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [y] | 0.032 in |
| Size / Dimension [y] | 0.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.06 | |||
| 25 | $ 0.06 | |||
| 50 | $ 0.05 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.02 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.06 | |||
| 25 | $ 0.06 | |||
| 50 | $ 0.05 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.02 | |||
| Tape & Reel (TR) | 4000 | $ 0.02 | ||
| 8000 | $ 0.01 | |||
Description
General part information
MU1608 Series
470 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 0603 (1608 Metric) 350mA 450mOhm
