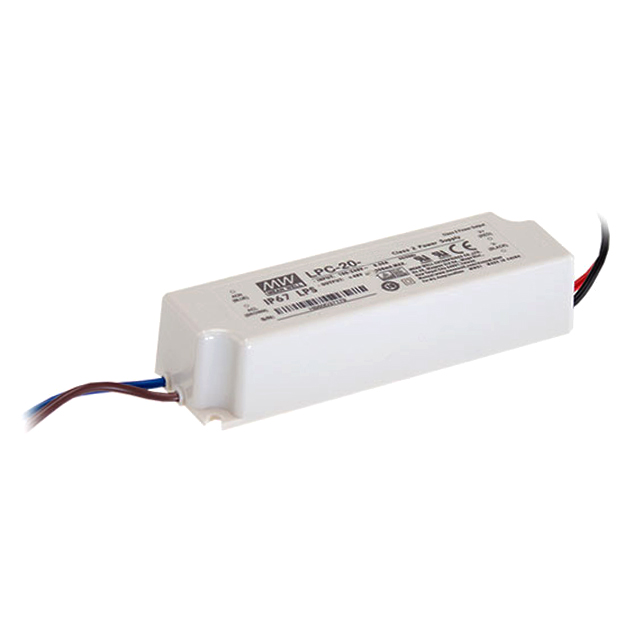

LPC-20-350
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 9-48V 350MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPC-20-350
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 9-48V 350MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPC-20-350 |
|---|---|
| Approval Agency | TUV, UR, CE |
| Current - Output (Max) [Max] | 350 mA |
| Efficiency | 83 % |
| Features | OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 17 W |
| Ratings | IP67 |
| Size / Dimension [x] | 118 mm |
| Size / Dimension [x] | 4.65 " |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [y] | 1.38 " |
| Size / Dimension [z] | 26 mm |
| Size / Dimension [z] | 1.02 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 264 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output [Max] | 48 V |
| Voltage - Output [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.10 | |
| 5 | $ 9.60 | |||
| 10 | $ 9.20 | |||
| 25 | $ 8.90 | |||
Description
General part information
LPC-20 Series
350mA 9 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output
