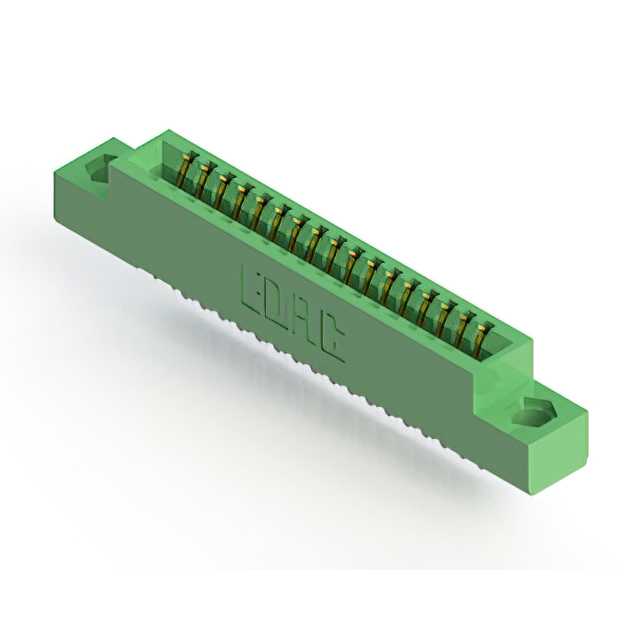

341-017-500-104

Active

EDAC Inc.

2.54MM STRAIGHT 17P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

341-017-500-104

Active

EDAC Inc.

2.54MM STRAIGHT 17P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-017-500-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

341-017 Series

Part	Termination Rows	Read Out	Mounting Type	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Material	Material - Insulation	Termination	Card Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Gender	Number of Rows
EDAC Inc. 341-017-500-103	1	Single	Through Hole	Semi Bellows	0.116 in	Floating Bobbin Flush Mount	2.95 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	Copper Alloy	Diallyl Phthalate (DAP)	Solder Eyelet(s)	Non Specified - Single Edge	Green	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	1
EDAC Inc. 341-017-522-104	1	Single	Through Hole	Semi Bellows	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	Copper Alloy	Polyester Thermoplastic	Solder	Non Specified - Single Edge	Green	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	1
EDAC Inc. 341-017-524-104	1	Single	Through Hole	Semi Bellows	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	Copper Alloy	Polyester Thermoplastic	Solder	Non Specified - Single Edge	Green	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	1
EDAC Inc. 341-017-520-104	1	Single	Through Hole	Semi Bellows	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	Copper Alloy	Polyester Thermoplastic	Solder	Non Specified - Single Edge	Green	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	1
EDAC Inc. 341-017-500-102	1	Single	Through Hole	Semi Bellows	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	Copper Alloy	Diallyl Phthalate (DAP)	Solder Eyelet(s)	Non Specified - Single Edge	Green	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	1
EDAC Inc. 341-017-524-101	1	Single	Through Hole	Semi Bellows				10 Áin	0.25 Ám	2.54 mm	0.1 in	Copper Alloy	Polyester Thermoplastic	Solder	Non Specified - Single Edge	Green	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	1
EDAC Inc. 341-017-522-101	1	Single	Through Hole	Semi Bellows				10 Áin	0.25 Ám	2.54 mm	0.1 in	Copper Alloy	Polyester Thermoplastic	Solder	Non Specified - Single Edge	Green	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	1
EDAC Inc. 341-017-521-107	1	Single	Through Hole	Semi Bellows		Flush Mount M3 Threaded Insert Top Opening		10 Áin	0.25 Ám	2.54 mm	0.1 in	Copper Alloy	Polyester Thermoplastic	Solder	Non Specified - Single Edge	Green	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	1
EDAC Inc. 341-017-521-108	1	Single	Through Hole	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening		10 Áin	0.25 Ám	2.54 mm	0.1 in	Copper Alloy	Polyester Thermoplastic	Solder	Non Specified - Single Edge	Green	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	1
EDAC Inc. 341-017-500-104	1	Single	Through Hole	Semi Bellows	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	Copper Alloy	Diallyl Phthalate (DAP)	Solder Eyelet(s)	Non Specified - Single Edge	Green	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 12.93
LCSC	Piece	1	$ 8.53
		200	$ 3.30
		500	$ 3.18
		1000	$ 3.13

Description

General part information

341-017 Series

17 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
