111623-7

Active

TE Connectivity AMP Connectors

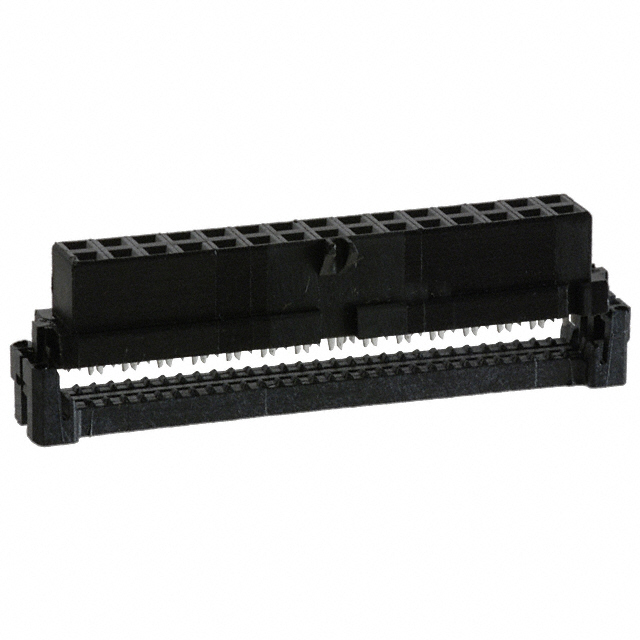

CONN RCPT 30POS IDC 28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

111623-7

Active

TE Connectivity AMP Connectors

CONN RCPT 30POS IDC 28AWG GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	111623-7	111623 Series

Cable Termination	IDC	IDC
Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	Female Socket	Female Socket
Features	Polarizing Key, Feed Through	Polarizing Key, Feed Through
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	30	8 - 44
Number of Positions	-	16
Number of Rows	2	2
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	2 mm	2 mm
Row Spacing	0.079 in	0.079 in
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

111623 Series

CONN RCPT 34POS IDC 28AWG GOLD

Part	Row Spacing	Row Spacing	Wire Type	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Cable Termination	Mounting Type	Number of Positions	Color	Contact Type	Wire Gauge	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows
TE Connectivity AMP Connectors 2-111623-8	2 mm	0.079 in	Ribbon Cable	Feed Through, Polarizing Key	0.76 Ám	30 Áin	Receptacle	IDC	Free Hanging (In-Line)	34	Black	Female Socket	28 AWG	0.079 in	2 mm	Gold	2
TE Connectivity AMP Connectors 3-111623-1	2 mm	0.079 in	Ribbon Cable	Feed Through, Polarizing Key	0.76 Ám	30 Áin	Receptacle	IDC	Free Hanging (In-Line)	12	Black	Female Socket	28 AWG	0.079 in	2 mm	Gold	2
TE Connectivity AMP Connectors 1-111623-0	2 mm	0.079 in	Ribbon Cable	Feed Through, Polarizing Key	0.76 Ám	30 Áin	Receptacle	IDC	Free Hanging (In-Line)	44	Black	Female Socket	28 AWG	0.079 in	2 mm	Gold	2
TE Connectivity AMP Connectors 111623-4	2 mm	0.079 in	Ribbon Cable	Feed Through, Polarizing Key	0.76 Ám	30 Áin	Receptacle	IDC	Free Hanging (In-Line)	20	Black	Female Socket	28 AWG	0.079 in	2 mm	Gold	2
TE Connectivity AMP Connectors 111623-9	2 mm	0.079 in	Ribbon Cable	Feed Through, Polarizing Key	0.76 Ám	30 Áin	Receptacle	IDC	Free Hanging (In-Line)	40	Black	Female Socket	28 AWG	0.079 in	2 mm	Gold	2
TE Connectivity AMP Connectors 2-111623-4	2 mm	0.079 in	Ribbon Cable	Feed Through, Polarizing Key	0.76 Ám	30 Áin	Receptacle	IDC	Free Hanging (In-Line)	40	Black	Female Socket	28 AWG	0.079 in	2 mm	Gold	2
TE Connectivity AMP Connectors 111623-7	2 mm	0.079 in	Ribbon Cable	Feed Through, Polarizing Key	0.76 Ám	30 Áin	Receptacle	IDC	Free Hanging (In-Line)	30	Black	Female Socket	28 AWG	0.079 in	2 mm	Gold	2
TE Connectivity AMP Connectors 1-111623-9	2 mm	0.079 in	Ribbon Cable	Feed Through, Polarizing Key	0.76 Ám	30 Áin	Receptacle	IDC	Free Hanging (In-Line)	14	Black	Female Socket	28 AWG	0.079 in	2 mm	Gold	2
TE Connectivity AMP Connectors 3-111623-0	2 mm	0.079 in	Ribbon Cable	Feed Through, Polarizing Key	0.76 Ám	30 Áin	Receptacle	IDC	Free Hanging (In-Line)	8	Black	Female Socket	28 AWG	0.079 in	2 mm	Gold	2
TE Connectivity AMP Connectors 111623-2	2 mm	0.079 in	Ribbon Cable	Feed Through, Polarizing Key	0.76 Ám	30 Áin	Receptacle	IDC	Free Hanging (In-Line)	14	Black	Female Socket	28 AWG	0.079 in	2 mm	Gold	2

Description

General part information

111623 Series

30 Position Rectangular Receptacle Connector IDC Gold 28 AWG
