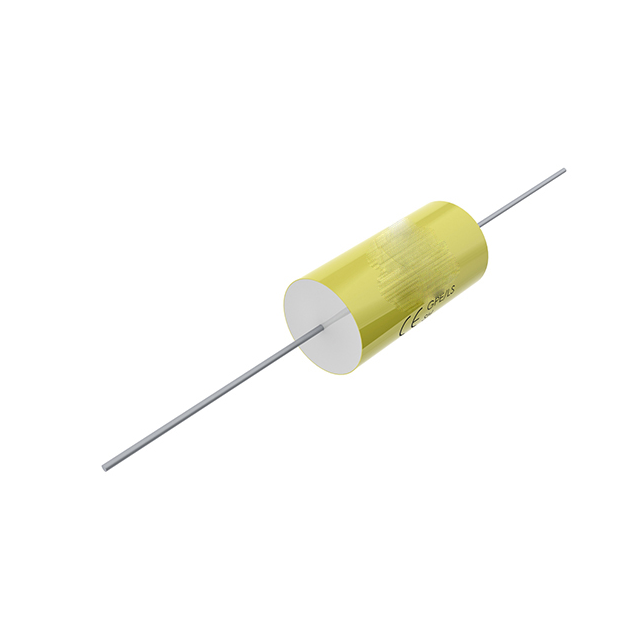

C4CAMUB3100AA0J

Active

KEMET

CAP FILM 0.1UF 5% 850VDC AXIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.1UF 5% 850VDC AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C4CAMUB3100AA0J

Applications	High Frequency, DC Filtering, DC Link, Switching, Snubber
Capacitance	100000 pF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	16.6 mOhms
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Axial
Size / Dimension [diameter]	0.413 in
Size / Dimension [diameter]	10.5 mm
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.299 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	450 V
Voltage Rating - DC	850 V

Part	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Mounting Type	ESR (Equivalent Series Resistance)	Package / Case	Tolerance	Applications	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Voltage Rating - DC	Voltage Rating - AC	Capacitance
KEMET C4CAMUB3100AA0J	0.413 in	33 mm	1.299 in	10.5 mm	Through Hole	16.6 mOhms	Axial	5 %	DC Filtering DC Link High Frequency Snubber Switching	PC Pins	85 °C	-40 °C	Metallized Polypropylene (PP)	850 V	450 V	100000 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.1 µF Film Capacitor 450V 850V Polypropylene (PP), Metallized Axial
