KKU-9-RT

Active

Essentra Access Solutions

CBL CLIP U-TYPE GRAY ADHESIVE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP U-TYPE GRAY ADHESIVE

Technical Specifications

Parameters and characteristics for this part

Specification	KKU-9-RT

Adhesive	Acrylic Based (RMS-15)
Color	Gray
Features	Flame Retardant
Height [z]	19.05 mm
Height [z]	0.75 in
Length [x]	1 in
Length [x]	25.4 mm
Material	Polyvinyl Chloride (PVC)
Material Flammability Rating	UL94 V-0
Mounting Type	Adhesive
Opening Size [custom]	0.563 in
Opening Size [custom]	14.3 mm
Type Attributes	Open
Width	25.4 mm
Width [x]	1 in

Part	Type Attributes	Material Flammability Rating	Color	Material	Mounting Type	Features	Adhesive	Width [y]	Width [y]	Opening Size [z]	Opening Size	Length	Length	Height [z]	Height [z]	Length [x]	Length [x]	Width	Width [x]	Opening Size [custom]	Opening Size [custom]	Opening Size [diameter]	Opening Size [diameter]
Essentra Access Solutions KKU-2-RT	Open	UL94 V-0	Gray	Polyvinyl Chloride (PVC)	Adhesive	Flame Retardant	Acrylic Based (RMS-15)	0.75 in	19.05 mm	0.125 in	3.18 mm	19.05 mm	0.75 in	7.14 mm	0.281 in
Essentra Access Solutions KKU-9-RT	Open	UL94 V-0	Gray	Polyvinyl Chloride (PVC)	Adhesive	Flame Retardant	Acrylic Based (RMS-15)							19.05 mm	0.75 in	1 in	25.4 mm	25.4 mm	1 in	0.563 in	14.3 mm
Essentra Access Solutions KKU-6-RT	Open	UL94 V-0	Gray	Polyvinyl Chloride (PVC)	Adhesive	Flame Retardant	Acrylic Based (RMS-15)	0.75 in	19.05 mm			19.05 mm	0.75 in	15.08 mm	0.594 in
Essentra Access Solutions KKU-8-RT	Open	UL94 V-0	Gray	Polyvinyl Chloride (PVC)	Adhesive	Flame Retardant	Acrylic Based (RMS-15)							17.5 mm	0.689 "	1 in	25.4 mm	25.4 mm	1 in			12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

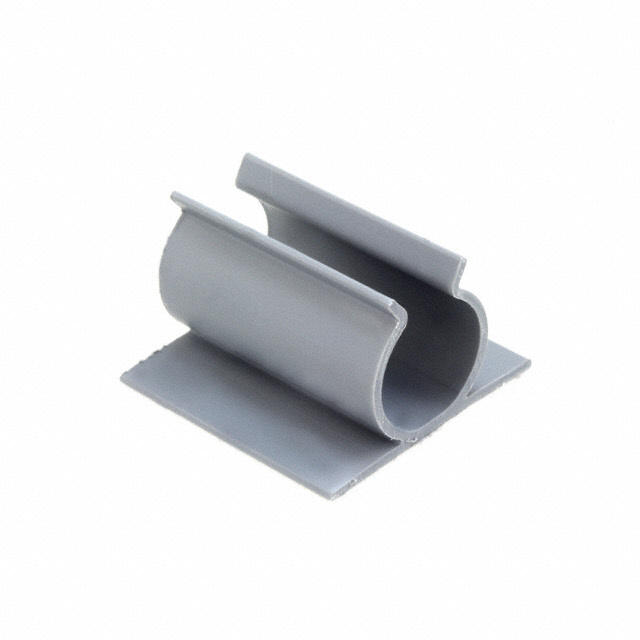

Cable Clip, U-Type Gray Adhesive 0.563" (14.30mm)

Technical documentation and resources

No documents available
