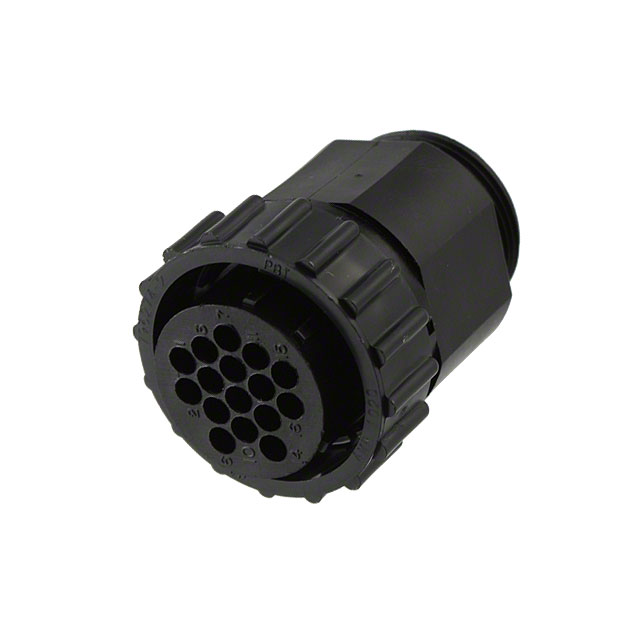

CONN PLG HSG FMALE 16POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLG HSG FMALE 16POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796274-2	796274 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Contact Size	16	16
Contact Type	Crimp	Crimp
Features	Coupling Nut, Backshell	Coupling Nut, Backshell
Housing Color	Black	Black
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	-	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	16	16
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Shell Size - Insert [Max]	16	16
Shell Size - Insert [Min]	17	17
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets

CONN PLG HSG FMALE 16POS INLINE

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Type	Contact Size	Housing Color	Note	Contact Shape	Material Flammability Rating	Contact Type	Features	Insert Material	Shielding	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Mounting Type	Number of Positions	Connector Type
TE Connectivity AMP Connectors 796274-1	IP67 - Dust Tight, Waterproof	105 ░C	-55 °C	Keyed	For Female Sockets	16	Black	Contacts Not Included	Circular	UL94 V-0	Crimp	Backshell, Coupling Nut	Thermoplastic	Unshielded	17	16	Free Hanging (In-Line)	16	Plug Housing
TE Connectivity AMP Connectors 796274-2	IP67 - Dust Tight, Waterproof	105 ░C	-55 °C	Keyed	For Female Sockets	16	Black	Contacts Not Included	Circular	UL94 V-0	Crimp	Backshell, Coupling Nut		Unshielded	17	16	Free Hanging (In-Line)	16	Plug Housing
TE Connectivity AMP Connectors 796274-4	IP67 - Dust Tight, Waterproof	105 ░C	-55 °C	Keyed	For Female Sockets	16	Black	Contacts Not Included	Circular	UL94 V-0	Crimp	Backshell, Coupling Nut	Thermoplastic	Unshielded	17	16	Free Hanging (In-Line)	16	Plug Housing
