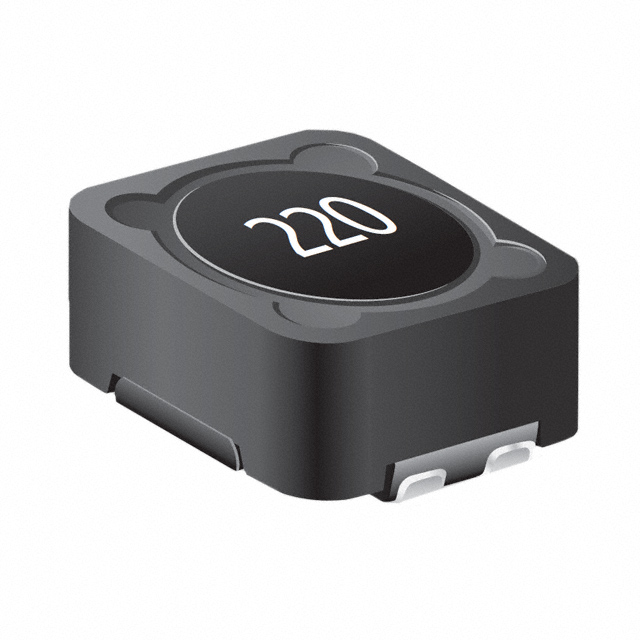

SRF1260A-R47Y

Active

Bourns Inc.

IND12.5X12.5X6MM,2X0.47UH30%8.8A,SHDSMD /TAPE & REEL - 13" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

SRF1260A-R47Y

Active

Bourns Inc.

IND12.5X12.5X6MM,2X0.47UH30%8.8A,SHDSMD /TAPE & REEL - 13" REEL

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRF1260A-R47Y

Current Rating - Parallel	17.6 A
Current Rating - Series [custom]	8.8 A
Current Saturation - Parallel [custom]	33 A
Current Saturation - Series	16.5 A
DC Resistance (DCR) - Parallel [Max]	5.3 mOhm
DC Resistance (DCR) - Series [Max]	21.2 mOhm
Height [z]	6.2 mm
Height [z]	0.244 in
Inductance - Connected In Parallel	470 nH
Inductance - Connected In Series	1.88 µH
Mounting Type	Surface Mount
Number of Coils	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.492 in
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	0.492 "
Size / Dimension [y]	12.5 mm
Tolerance	30 %

SRF1260A Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating - Parallel	DC Resistance (DCR) - Series [Max]	DC Resistance (DCR) - Parallel [Max]	Mounting Type	Inductance - Connected In Series	Tolerance	Current Rating - Series [custom]	Ratings	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Height [z]	Height [z]	Number of Coils	Current Saturation - Series	Inductance - Connected In Parallel	Current Saturation - Parallel [custom]	Package / Case	DC Resistance (DCR) - Parallel	Current Saturation - Parallel [custom]	Current Rating - Series [custom]
Bourns Inc. SRF1260A-R47Y	0.492 in	0.492 "	12.5 mm	12.5 mm	17.6 A	21.2 mOhm	5.3 mOhm	Surface Mount	1.88 µH	30 %	8.8 A	AEC-Q200	Shielded	125 °C	-40 °C	6.2 mm	0.244 in	2	16.5 A	470 nH	33 A	Nonstandard
Bourns Inc. SRF1260A-100M	0.492 in	0.492 "	12.5 mm	12.5 mm	5.35 A	93.4 mOhm		Surface Mount	40 µH	20 %	2.67 A	AEC-Q200	Shielded	125 °C	-40 °C	6.2 mm	0.244 in	2	3.59 A	10 µH		Nonstandard	24.6 mOhm	7.17 A
Bourns Inc. SRF1260A-470M	0.492 in	0.492 "	12.5 mm	12.5 mm	2.71 A	340 mOhm		Surface Mount	188 µH	20 %		AEC-Q200	Shielded	125 °C	-40 °C	6.2 mm	0.244 in	2	1.62 A	47 µH		Nonstandard	86 mOhm	3.24 A	1.35 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.55
	Digi-Reel®	1	$ 1.55
	Tape & Reel (TR)	1600	$ 0.74
Newark	Each (Supplied on Full Reel)	1000	$ 0.82
		2000	$ 0.74
		4000	$ 0.67
		6000	$ 0.64
		10000	$ 0.63

Description

General part information

SRF1260A Series

Shielded 2 Coil Inductor Array 1.88 µH Inductance - Connected in Series 470 nH Inductance - Connected in Parallel 5.3mOhm Max DC Resistance (DCR) - Parallel 17.6 A Nonstandard

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
