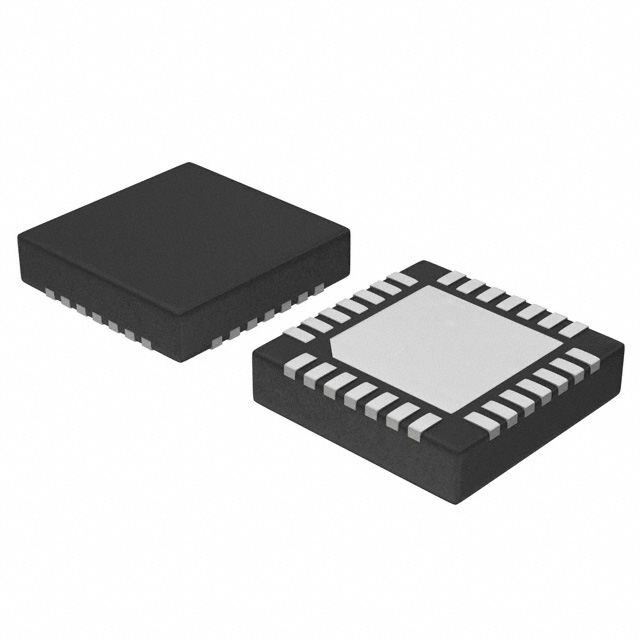

PIC24HJ64GP202-I/MM
ActiveMicrochip Technology
16-BIT, FLASH, 40 MHZ, MICROCONTROLLER, PQCC28, 6 X 6 MM, 0.90 MM HEIGHT, PLASTIC, QFN-28
Deep-Dive with AI
Search across all available documentation for this part.
PIC24HJ64GP202-I/MM
ActiveMicrochip Technology
16-BIT, FLASH, 40 MHZ, MICROCONTROLLER, PQCC28, 6 X 6 MM, 0.90 MM HEIGHT, PLASTIC, QFN-28
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PIC24HJ64GP202-I/MM | PIC24HJ64GP202 Series |
|---|---|---|
| Core Processor | PIC | PIC |
| Core Size | 16-Bit | 16-Bit |
| Data Converters | A/D 10x10b/12b | A/D 10x10b/12b |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Through Hole, Surface Mount |
| Number of I/O | 21 | 21 |
| Operating Temperature [Max] | 85 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 28-VQFN Exposed Pad | 28-DIP, 28-SOIC, 28-VQFN Exposed Pad |
| Package / Case | - | 0.295 - 7.62 mm |
| Package / Case | - | 0.3 in |
| Package / Case | - | 7.5 mm |
| Peripherals | Brown-out Detect/Reset, DMA, WDT, POR, PWM | Brown-out Detect/Reset, DMA, WDT, POR, PWM |
| Program Memory Size | 64 KB | 64 KB |
| Program Memory Type | FLASH | FLASH |
| Qualification | - | AEC-Q100 |
| RAM Size | 8K x 8 | 8K x 8 |
| Speed | 40 MIPs | 40 MIPs |
| Supplier Device Package | 28-QFN-S (6x6) | 28-SPDIP, 28-SOIC, 28-QFN-S (6x6) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Avnet Americas | N/A | 122 | $ 5.80 | |
| 244 | $ 5.67 | |||
| 366 | $ 5.55 | |||
| 610 | $ 5.42 | |||
| 1220 | $ 5.29 | |||
| DigiKey | N/A | 1 | $ 6.06 | |
| 25 | $ 5.56 | |||
| 100 | $ 5.06 | |||
| Digikey | Tube | 1 | $ 6.02 | |
| 25 | $ 5.52 | |||
| 100 | $ 5.02 | |||
| Farnell | N/A | 1 | $ 6.73 | |
| 10 | $ 4.40 | |||
| 100 | $ 3.62 | |||
| Future Electronics | N/A | 122 | $ 5.32 | |
| Master Electronics | N/A | 5 | $ 5.72 | |
| 25 | $ 5.39 | |||
| 61 | $ 5.25 | |||
| 122 | $ 5.04 | |||
| 305 | $ 4.73 | |||
| 549 | $ 4.66 | |||
| Microchip Direct | TUBE | 1 | $ 6.02 | |
| 25 | $ 5.52 | |||
| 100 | $ 5.02 | |||
| 1000 | $ 4.60 | |||
| 5000 | $ 4.37 | |||
| Microchip Technology Inc | N/A | 1 | $ 6.02 | |
| 25 | $ 5.52 | |||
| 100 | $ 5.02 | |||
| 1000 | $ 4.60 | |||
| 5000 | $ 4.37 | |||
| Mouser Electronics | N/A | 1 | $ 6.02 | |
| 25 | $ 5.52 | |||
| 100 | $ 5.02 | |||
| Onlinecomponents.com | N/A | 5 | $ 5.72 | |
| 25 | $ 5.39 | |||
| 61 | $ 5.25 | |||
| 122 | $ 5.04 | |||
| 305 | $ 4.73 | |||
| 549 | $ 4.66 | |||
| TME | N/A | 1 | $ 6.30 | |
| 5 | $ 6.09 | |||
| 25 | $ 5.69 | |||
| 122 | $ 5.28 | |||
PIC24HJ64GP202 Series
IC MCU 16BIT 64KB FLASH 28SPDIP
| Part | Data Converters | Grade | Mounting Type | RAM Size | Program Memory Type | Oscillator Type | Program Memory Size | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Package / Case | Package / Case | Qualification | Supplier Device Package | Core Size | Speed | Peripherals | Number of I/O | Core Processor | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology PIC24HJ64GP202-E/SP | A/D 10x10b/12b | Automotive | Through Hole | 8K x 8 | FLASH | Internal | 64 KB | -40 °C | 125 °C | 7.62 mm | 28-DIP | 0.3 in | AEC-Q100 | 28-SPDIP | 16-Bit | 40 MIPs | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 21 | PIC | |
Microchip Technology PIC24HJ64GP202T-I/SO | A/D 10x10b/12b | Surface Mount | 8K x 8 | FLASH | Internal | 64 KB | -40 °C | 85 °C | 0.295 " | 28-SOIC | 28-SOIC | 16-Bit | 40 MIPs | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 21 | PIC | 7.5 mm | |||
Microchip Technology PIC24HJ64GP202-I/SP | A/D 10x10b/12b | Through Hole | 8K x 8 | FLASH | Internal | 64 KB | -40 °C | 85 °C | 7.62 mm | 28-DIP | 0.3 in | 28-SPDIP | 16-Bit | 40 MIPs | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 21 | PIC | |||
Microchip Technology PIC24HJ64GP202-E/MM | A/D 10x10b/12b | Automotive | Surface Mount | 8K x 8 | FLASH | Internal | 64 KB | -40 °C | 125 °C | 28-VQFN Exposed Pad | AEC-Q100 | 28-QFN-S (6x6) | 16-Bit | 40 MIPs | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 21 | PIC | |||
Microchip Technology PIC24HJ64GP202-I/SO | A/D 10x10b/12b | Surface Mount | 8K x 8 | FLASH | Internal | 64 KB | -40 °C | 85 °C | 0.295 " | 28-SOIC | 28-SOIC | 16-Bit | 40 MIPs | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 21 | PIC | 7.5 mm | |||
Microchip Technology PIC24HJ64GP202-E/SO | A/D 10x10b/12b | Automotive | Surface Mount | 8K x 8 | FLASH | Internal | 64 KB | -40 °C | 125 °C | 0.295 " | 28-SOIC | AEC-Q100 | 28-SOIC | 16-Bit | 40 MIPs | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 21 | PIC | 7.5 mm | |
Microchip Technology PIC24HJ64GP202-I/MM | A/D 10x10b/12b | Surface Mount | 8K x 8 | FLASH | Internal | 64 KB | -40 °C | 85 °C | 28-VQFN Exposed Pad | 28-QFN-S (6x6) | 16-Bit | 40 MIPs | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 21 | PIC | |||||
Microchip Technology PIC24HJ64GP202T-I/MM | A/D 10x10b/12b | Surface Mount | 8K x 8 | FLASH | Internal | 64 KB | -40 °C | 85 °C | 28-VQFN Exposed Pad | 28-QFN-S (6x6) | 16-Bit | 40 MIPs | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 21 | PIC |
Description
General part information
PIC24HJ64GP202 Series
The PIC24H 16-bit device family employs a powerful 16-bit
architecture, ideal for applications that rely on high-speed, repetitive
computations, as well as control. The devices are pin compatible with the
