GB215AH

Active

NKK Switches

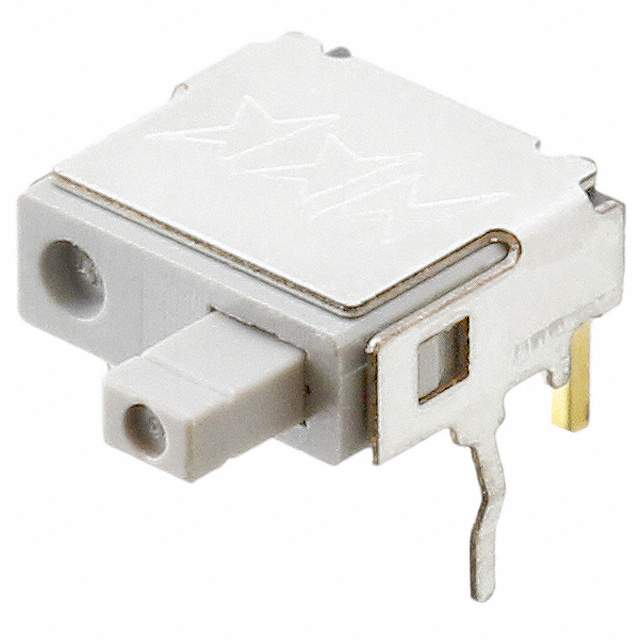

PUSHBUTTON SWITCH, GB2 SERIES, SPST-NO, OFF-(ON), PLUNGER FOR CAP, GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

GB215AH

Active

NKK Switches

PUSHBUTTON SWITCH, GB2 SERIES, SPST-NO, OFF-(ON), PLUNGER FOR CAP, GRAY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GB215AH

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

GB215A Series

Part	Electrical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Actuator Type	Mounting Type	Termination Style	Features	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Actuator Marking	Voltage Rating - AC	Type
NKK Switches GB215AH-B	50000 Cycles	SPST-NO	70 °C	-25 °C	White	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AP-A	50000 Cycles	SPST-NO	70 °C	-25 °C	Black	Rectangular Button	Through Hole	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215A2H-BC	50000 Cycles	SPST-NO x 2	70 °C	-25 °C	Red White	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215A2H-AA	50000 Cycles	SPST-NO x 2	70 °C	-25 °C	Black	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AB	50000 Cycles	SPST-NO	70 °C	-25 °C		Plunger for Cap	Through Hole	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AH-C	50000 Cycles	SPST-NO	70 °C	-25 °C	Red	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AH-A	50000 Cycles	SPST-NO	70 °C	-25 °C	Black	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AB-B	50000 Cycles	SPST-NO	70 °C	-25 °C	White	Rectangular Button	Through Hole	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215A2H-AC	50000 Cycles	SPST-NO x 2	70 °C	-25 °C	Black Red	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AH	50000 Cycles	SPST-NO	70 °C	-25 °C		Plunger for Cap	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
