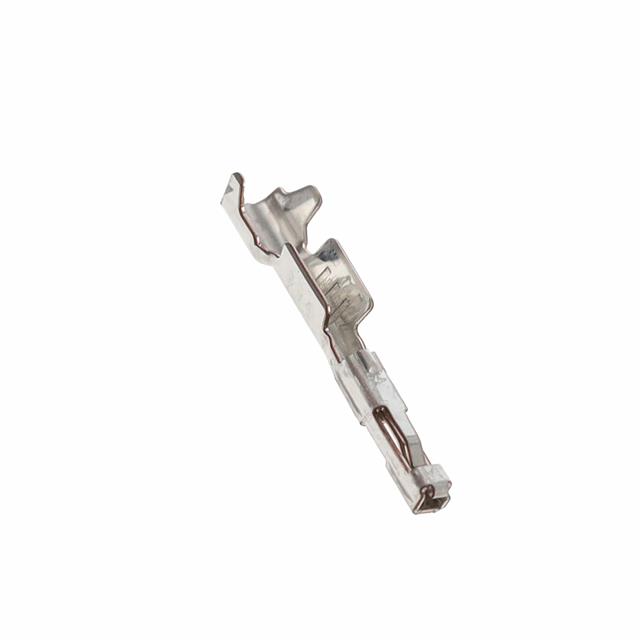

ZE05-2022SCF

Active

Hirose Electric Co Ltd

CONN CONTACT 20-22 AWG

Deep-Dive with AI

Search across all available documentation for this part.

ZE05-2022SCF

Active

Hirose Electric Co Ltd

CONN CONTACT 20-22 AWG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZE05-2022SCF	ZE05 Series

Color	-	Black
Connector Type	-	Plug, Header
Contact Finish	Tin	Tin
Contact Finish - Post	-	Tin
Contact Finish Thickness	39.4 Áin	39.4 Áin
Contact Finish Thickness	1 Ám	1 Ám
Contact Finish Thickness - Mating	-	1 µm
Contact Finish Thickness - Mating	-	39.4 µin
Contact Finish Thickness - Post	-	1 çm
Contact Finish Thickness - Post	-	39.4 çin
Contact Material	-	Brass
Contact Shape	-	Square
Contact Termination	Crimp	Crimp
Contact Type	-	Female Socket, Male Pin
Current Rating (Amps)	-	2 - 5 A
Fastening Type	-	Locking Ramp, Latch Lock
Features	-	Solder Retention
Insulation Color	-	Black
Insulation Height	-	8.84 mm
Insulation Height	-	0.348 in
Insulation Height	-	1.457 "
Insulation Height	-	37 mm
Insulation Material	-	Polyamide (PA), Nylon
Material Flammability Rating	-	UL94 V-0
Mounting Type	-	Free Hanging (In-Line), Surface Mount, Right Angle
Number of Positions	-	2 - 24
Number of Positions	-	16
Number of Positions Loaded	-	All
Number of Rows	-	1 - 2
Operating Temperature	-	125 °C
Operating Temperature	-	-40 °C
Pin or Socket	Socket	Socket
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating	-	0.079 in
Pitch - Mating	-	2 mm
Shrouding	-	Shrouded - 4 Wall
Style	-	Board to Cable/Wire
Termination	-	Solder
Type	Stamped	Stamped
Voltage Rating	-	60 VAC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	20 AWG	20 AWG

ZE05 Series

CONN PLUG HSG 8POS 2.00MM

Part	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Contact Termination	Contact Type	Fastening Type	Color	Mounting Type	Insulation Material	Features	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Insulation Color	Insulation Height	Insulation Height	Contact Shape	Contact Material	Voltage Rating	Number of Positions Loaded	Shrouding	Termination	Number of Positions	Insulation Height [z]	Insulation Height [z]	Pin or Socket	Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]
Hirose Electric Co Ltd ZE05-8DS-HU/R	2	125 °C	-40 °C	8	0.079 in	2 mm	Plug	Crimp	Female Socket	Locking Ramp	Black	Free Hanging (In-Line)	Nylon, Polyamide (PA)
Hirose Electric Co Ltd ZE05-8DP-2H	2	125 °C	-40 °C	8			Header		Male Pin			Surface Mount, Right Angle	Nylon, Polyamide (PA)	Solder Retention	UL94 V-0	1 µm	39.4 µin	0.079 in	2 mm	2 A, 5 A	Tin	1 çm	39.4 çin	Board to Cable/Wire	Black	8.84 mm	0.348 in	Square	Brass	60 VAC	All	Shrouded - 4 Wall	Solder
Hirose Electric Co Ltd ZE05-24DP-2H	2	125 °C	-40 °C	24			Header		Male Pin			Surface Mount, Right Angle	Nylon, Polyamide (PA)	Solder Retention	UL94 V-0			0.079 in	2 mm	2 A, 5 A	Tin			Board to Cable/Wire	Black	8.84 mm	0.348 in	Square	Brass	60 VAC	All	Shrouded - 4 Wall	Solder
Hirose Electric Co Ltd ZE05-16DS-HU/R	2	125 °C	-40 °C		0.079 in	2 mm	Plug	Crimp	Female Socket	Latch Lock	Black	Free Hanging (In-Line)	Nylon, Polyamide (PA)																					16
Hirose Electric Co Ltd ZE05-12DP-2H	2	125 °C	-40 °C	12			Header		Male Pin			Surface Mount, Right Angle	Nylon, Polyamide (PA)	Solder Retention	UL94 V-0			0.079 in	2 mm	2 A, 5 A	Tin			Board to Cable/Wire	Black	8.84 mm	0.348 in	Square	Brass	60 VAC	All	Shrouded - 4 Wall	Solder
Hirose Electric Co Ltd ZE05-20DP-2H	2	125 °C	-40 °C	20			Header		Male Pin			Surface Mount, Right Angle	Nylon, Polyamide (PA)	Solder Retention	UL94 V-0			0.079 in	2 mm	2 A, 5 A	Tin			Board to Cable/Wire	Black	8.84 mm	0.348 in	Square	Brass	60 VAC	All	Shrouded - 4 Wall	Solder
Hirose Electric Co Ltd ZE05-20DS-HU/R	2	125 °C	-40 °C	20	0.079 in	2 mm	Plug	Crimp	Female Socket	Latch Lock	Black	Free Hanging (In-Line)	Nylon, Polyamide (PA)
Hirose Electric Co Ltd ZE05-2P-2H	1	125 °C	-40 °C	2			Header		Male Pin			Surface Mount, Right Angle	Nylon, Polyamide (PA)	Solder Retention	UL94 V-0			0.079 in	2 mm	2 A, 5 A	Tin			Board to Cable/Wire	Black			Square	Brass	60 VAC	All	Shrouded - 4 Wall	Solder		1.457 "	37 mm
Hirose Electric Co Ltd ZE05-2S-HU/R	2	125 °C	-40 °C	2	0.079 in	2 mm	Plug	Crimp	Female Socket	Latch Lock	Black	Free Hanging (In-Line)	Nylon, Polyamide (PA)
Hirose Electric Co Ltd ZE05-2022SCF								Crimp																													Socket	Stamped	Tin	39.4 Áin	1 Ám	20 AWG	22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.15
		10	$ 0.12
		25	$ 0.10
		50	$ 0.09
		100	$ 0.09
		250	$ 0.08
		500	$ 0.07
		1000	$ 0.06
		2500	$ 0.06
	Tape & Reel (TR)	10000	$ 0.05
		20000	$ 0.05
		30000	$ 0.04
		50000	$ 0.04

Description

General part information

ZE05 Series

Socket Contact Tin 20-22 AWG Crimp Stamped

Documents

Technical documentation and resources

No documents available
