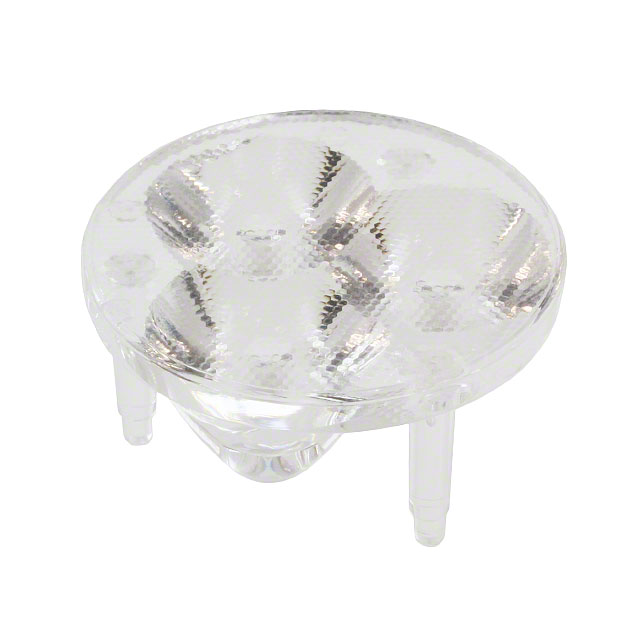

C10754_CUTE-3-SS

Active

LEDIL

LED LENS, MULTI-LED, SPOT, TRANSPARENT, 35 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

C10754_CUTE-3-SS

Active

LEDIL

LED LENS, MULTI-LED, SPOT, TRANSPARENT, 35 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C10754_CUTE-3-SS

Color	Clear
For Use With/Related Manufacturer	Seoul, LG Innotek, Ledil, Cree, Lumileds Nichia, Osram
Lens Size [diameter]	35 mm
Lens Transparency	Diffused
Material	Acrylic
Mounting Type	Adhesive
Number of LEDs	3
Optical Pattern	Spot
Type	Lens with Integrated Mount
Viewing Angle [Max]	20 °
Viewing Angle [Min]	10 °

C10754 Series

LED LENS, MULTI-LED, SPOT, TRANSPARENT, 35 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Part	Color	Material	Viewing Angle [Max]	Viewing Angle [Min]	Number of LEDs	Lens Size [diameter]	Optical Pattern	Type	For Use With/Related Manufacturer	Lens Transparency	Mounting Type
LEDIL C10754_CUTE-3-SS	Clear	Acrylic	20 °	10 °	3	35 mm	Spot	Lens with Integrated Mount	Cree, Ledil, LG Innotek, Lumileds Nichia, Osram, Seoul	Diffused	Adhesive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.84
		45	$ 2.71
		135	$ 2.27
Newark	Each	25	$ 2.83
		90	$ 2.60
		135	$ 2.38

Description

General part information

C10754 Series

The C10754_CUTE-3-SS is a transparent 35mm round multi-LED Smooth Spot Lens made of optical grade PMMA (Polymethylmethacrylate), allows use of high current and temperature conditions (105°C/220°F). It is specially designed for use with for Cree's XLAMP XP-E series of LEDs. A special care has been taken to make uniform white or warm white illumination and lenses work well with other colours also.
