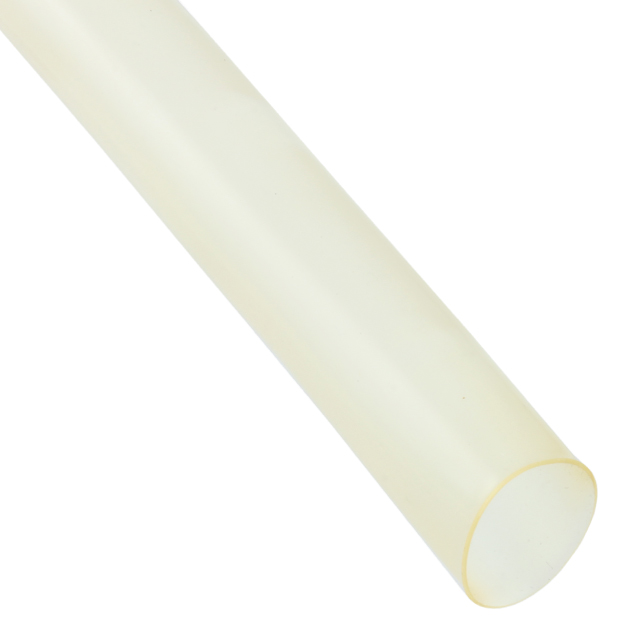

DWTC-8/2-X-STK
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK 0.315" X 4' CLEAR
Deep-Dive with AI
Search across all available documentation for this part.
DWTC-8/2-X-STK
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK 0.315" X 4' CLEAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DWTC-8/2-X-STK |
|---|---|
| Color | Clear |
| Features | Moisture-Proof, Abrasion Resistant, Adhesive Lined |
| Inner Diameter - Recovered | 0.079 in |
| Inner Diameter - Recovered | 2.01 mm |
| Inner Diameter - Supplied [diameter] | 8 mm |
| Inner Diameter - Supplied [diameter] | 0.315 in |
| Length [x] | 1.22 m |
| Length [x] | 4 ft |
| Material | Polyolefin (PO), Irradiated |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.89 mm |
| Recovered Wall Thickness | 0.035 in |
| Shelf Life | 36 Months |
| Shrink Temperature | 60 °C |
| Shrinkage Ratio | 4 to 1 |
| Storage/Refrigeration Temperature [Max] | 35 °C |
| Storage/Refrigeration Temperature [Min] | 0 °C |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1200 | $ 5.17 | |
Description
General part information
DWTC Series
Heat Shrink Tubing, Clear, 4:1, Dual Wall, Shrinks To 2 mm [.079 in], Irradiated Modified Polyolefin, 8 mm [.315 in] Expanded Inside, RAYCHEM DWTC
