31-238

Active

Amphenol RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT BULKHEAD JACK, CRIMP, 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT BULKHEAD JACK, CRIMP, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	31-238

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Eyelet
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms

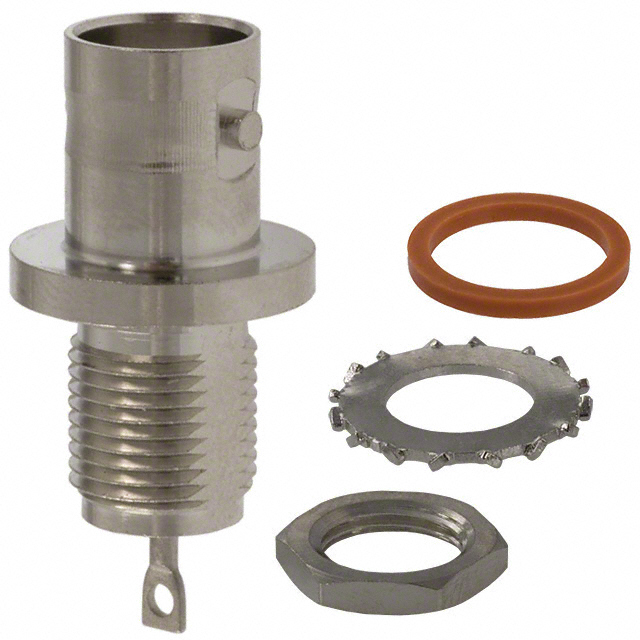

Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Dielectric Material	Frequency - Max [Max]	Connector Style	Number of Ports	Housing Color	Contact Termination	Center Contact Plating	Body Material	Connector Type	Mounting Feature	Body Finish	Includes	Insertion Loss	Fastening Type	Shield Termination	Impedance	Mating Cycles	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating
Amphenol RF 31-238	Polytetrafluoroethylene (PTFE)	2 GHz	BNC	1	Silver	Solder Eyelet	Silver	Brass	Female Socket Jack	Bulkhead - Rear Side Nut	Nickel	1 Connector 1 Gasket 1 Lockwasher 1 Nut	0.2 dB	Bayonet Lock	Solder	50 Ohms	500	Beryllium Copper	-65 ░C	165 °C	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Eyelet
