VSMB2020X01

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 100MA SMD

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 100MA SMD

Technical Specifications

Parameters and characteristics for this part

Specification	VSMB2020X01

Current - DC Forward (If) (Max) [Max]	100 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View

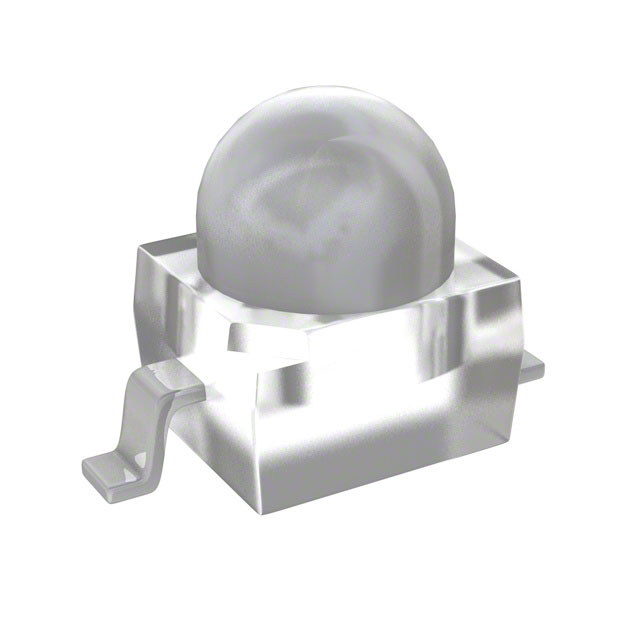

Package / Case	2-SMD, Gull Wing
Radiant Intensity (Ie) Min @ If [Min]	20 mW/sr
Type	Infrared (IR)
Viewing Angle	24 °
Voltage - Forward (Vf) (Typ)	1.35 V
Wavelength	940 nm

EMITTER IR 940NM 100MA SMD

Part	Viewing Angle	Orientation	Wavelength	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type
Vishay Semiconductor Opto Division VSMB2020X01	24 °	Top View	940 nm	1.35 V	100 mA	2-SMD, Gull Wing	20 mW/sr	85 °C	-40 °C	Surface Mount	Infrared (IR)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.35V 100mA 20mW/sr @ 100mA 24° 2-SMD, Gull Wing
