N-3B-UVB

Active

Essentra Access Solutions

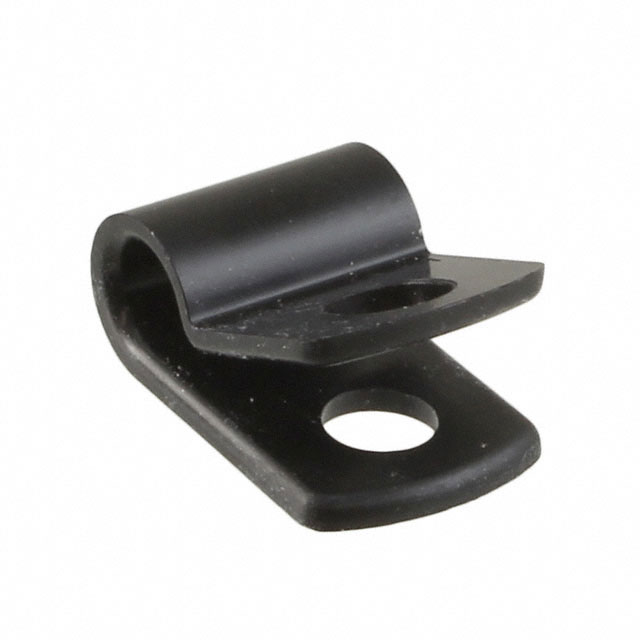

CBL CLAMP P-TYPE BLACK FASTENER

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLAMP P-TYPE BLACK FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	N-3B-UVB

Bundle Center to Mounting Center [x]	9.91 mm
Bundle Center to Mounting Center [x]	0.39 in
Color	Black
Features	UV Resistant
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.063 in
Material Thickness	1.6 mm
Mounting Type	Fastener
Opening Size [z]	4.78 mm
Opening Size [z]	0.188 in
Panel Hole Size	5.18 mm
Panel Hole Size [diameter]	0.204 in
Screw Size	M5
Screw Size	#10
Type	Clamp, P-Type

Part	Screw Size	Screw Size	Panel Hole Size [diameter]	Panel Hole Size	Material Flammability Rating	Opening Size [z]	Opening Size [z]	Features	Material Thickness	Material Thickness	Type	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Material	Mounting Type	Color
Essentra Access Solutions N-3B-UVB	M5	#10	0.204 in	5.18 mm	UL94 V-2	4.78 mm	0.188 in	UV Resistant	0.063 in	1.6 mm	Clamp P-Type	9.91 mm	0.39 in	Polyamide (PA66) Nylon 6/6	Fastener	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.12

General part information

Cable Clamp, P-Type Black Fastener 0.188" (4.78mm)

Technical documentation and resources
