IRAUDPS1
ActiveInfineon Technologies

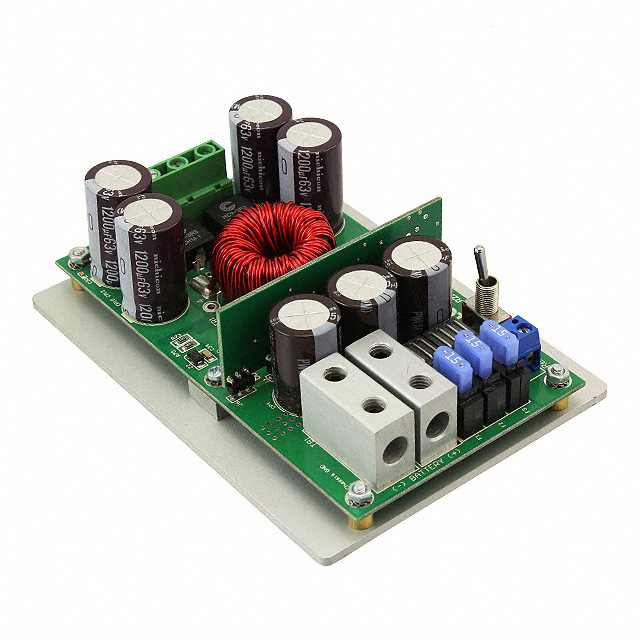

REFERENCE DESIGN BOARD - 12V SYSTEM 250W-1000W SCALABLE AUDIO POWER SUPPLY FEATURING IR2085
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IRAUDPS1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 7 A |
| Main Purpose | DC/DC, Positive and Negative |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 500 W |
| Regulator Topology | Boost |
| Supplied Contents | Board(s) |
| Utilized IC / Part | IRF6648, IR2085 |
| Voltage - Input [Max] | 18 V |
| Voltage - Input [Min] | 10 V |
| Voltage - Output | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 446.83 | |
Description
General part information
IRAUDPS1 Series
IR2085, IRF6648 - DC/DC, Positive and Negative 1, Isolated Outputs Evaluation Board
