XZFMOK20C-A

Active

SunLED

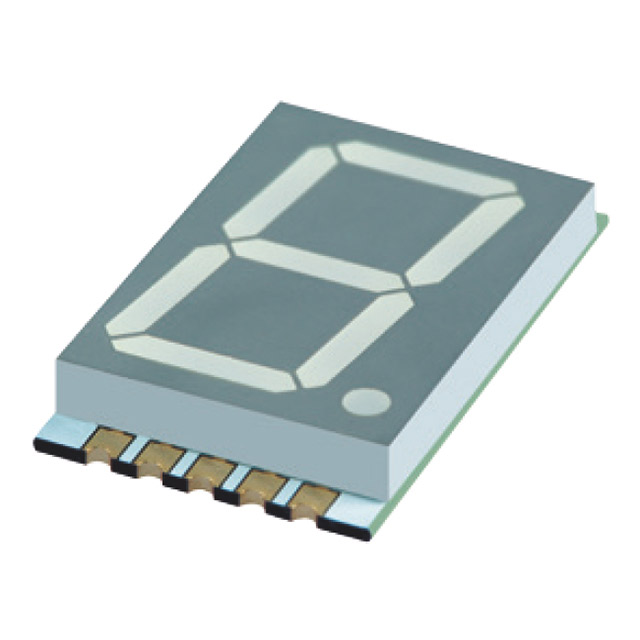

DISPLAY 7-SEG 0.8" SGL ORG 10SMD

Find alt

Alpha

XZFMOK20C-A

Active

SunLED

DISPLAY 7-SEG 0.8" SGL ORG 10SMD

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

XZFMOK20 Series

Display Modules - LED Character and Numeric Orange 7-Segment 1 Character Common Cathode 2V 10mA 0.945" H x 0.661" W x 0.148" D (24.00mm x 16.80mm x 3.75mm) 10-SMD, No Lead

Technical Specifications

Parameters and characteristics for this part

Specification	XZFMOK20C-A

Color	Orange
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.8 in
Display Type	7-Segment
Millicandela Rating	27 mcd
Number of Characters	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max)	75 mw
Size / Dimension Depth	0.148 in
Size / Dimension Height	0.945 in
Size / Dimension Width	0.661 in
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	610 nm

XZFMOK20 Series

Part	Digit/Alpha Size	Power Dissipation (Max)	Display Type	Color	Voltage - Forward (Vf) (Typ)	Current - Test	Common Pin	Number of Characters	Size / Dimension Depth	Size / Dimension Width	Size / Dimension Height	Wavelength - Peak	Millicandela Rating	Package / Case
SunLED XZFMOK20C-A	0.8 in	75 mw	7-Segment	Orange	2 V	10 mA	Common Cathode	1	0.148 in	0.661 in	0.945 in	610 nm	27 mcd	10-SMD No Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

XZFMOK20C-A | Datasheet
