3-928247-5
ActiveTE Connectivity AMP Connectors

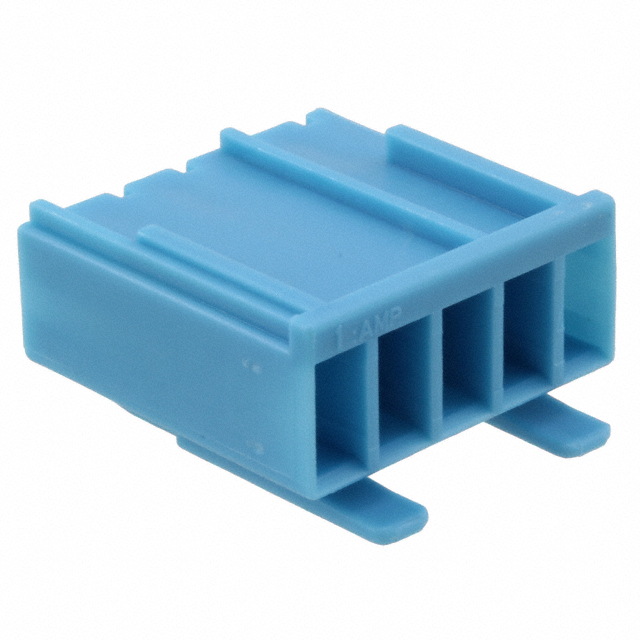

CONN RCPT HSG 5POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-928247-5
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 5POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-928247-5 | 928247 Series |
|---|---|---|
| Color | Blue | Natural, Gray, Violet, Yellow, Blue, Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon, Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 2 - 11 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
928247 Series
CONN RCPT HSG 5POS 5.00MM
| Part | Contact Termination | Fastening Type | Mounting Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Note | Number of Rows | Contact Type | Pitch [x] | Pitch [x] | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-928247-5 | Crimp | Latch Lock | Free Hanging (In-Line) | Nylon, Polyamide (PA) | -40 °C | 110 °C | Receptacle | Contacts Not Included | 1 | Female Socket | 5 mm | 0.197 in | Natural | |
TE Connectivity AMP Connectors 9-928247-4 | Crimp | Latch Lock | Free Hanging (In-Line) | -40 °C | 110 °C | Receptacle | Contacts Not Included | 1 | Female Socket | 5 mm | 0.197 in | Natural | 4 | |
TE Connectivity AMP Connectors 8-928247-2 | Crimp | Latch Lock | Free Hanging (In-Line) | Polyamide (PA66), Nylon 6/6 | -40 °C | 110 °C | Receptacle | Contacts Not Included | 1 | Female Socket | 5 mm | 0.197 in | Gray | 2 |
TE Connectivity AMP Connectors 5-928247-3 | Crimp | Latch Lock | Free Hanging (In-Line) | Nylon, Polyamide (PA) | -40 °C | 110 °C | Receptacle | Contacts Not Included | 1 | Female Socket | 5 mm | 0.197 in | Natural | |
TE Connectivity AMP Connectors 3-928247-4 | Crimp | Latch Lock | Free Hanging (In-Line) | Receptacle | Contacts Not Included | 1 | Female Socket | 5 mm | 0.197 in | Violet | 4 | |||
TE Connectivity AMP Connectors 928247-6 | Crimp | Latch Lock | Free Hanging (In-Line) | Polyamide (PA66), Nylon 6/6 | -40 °C | 110 °C | Receptacle | Contacts Not Included | 1 | Female Socket | 5 mm | 0.197 in | Gray | 6 |
TE Connectivity AMP Connectors 928247-3 | Crimp | Latch Lock | Free Hanging (In-Line) | Polyamide (PA66), Nylon 6/6 | -40 °C | 110 °C | Receptacle | Contacts Not Included | 1 | Female Socket | 5 mm | 0.197 in | Yellow | |
TE Connectivity AMP Connectors 3-928247-5 | Crimp | Latch Lock | Free Hanging (In-Line) | Nylon, Polyamide (PA) | -40 °C | 110 °C | Receptacle | Contacts Not Included | 1 | Female Socket | 5 mm | 0.197 in | Blue | |
TE Connectivity AMP Connectors 1-928247-1 | Crimp | Latch Lock | Free Hanging (In-Line) | Nylon, Polyamide (PA) | -40 °C | 110 °C | Receptacle | Contacts Not Included | 1 | Female Socket | 5 mm | 0.197 in | Yellow | 11 |
TE Connectivity AMP Connectors 4-928247-4 | Crimp | Latch Lock | Free Hanging (In-Line) | Nylon, Polyamide (PA) | -40 °C | 110 °C | Receptacle | Contacts Not Included | 1 | Female Socket | 5 mm | 0.197 in | Natural | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 31250 | $ 0.50 | |
Description
General part information
928247 Series
5 Rectangular Connectors - Housings Receptacle Blue 0.197" (5.00mm)
