5-928247-3

Active

TE Connectivity AMP Connectors

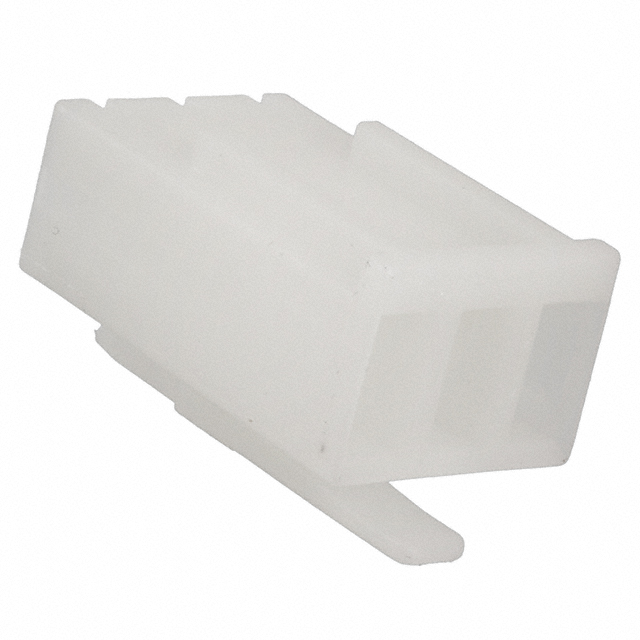

CONN RCPT HSG 3POS 5.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-928247-3

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 3POS 5.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.92
		10	$ 0.76
		25	$ 0.71
		50	$ 0.67
		100	$ 0.63
		250	$ 0.59
		500	$ 0.55
		1000	$ 0.52
		2500	$ 0.49

Description

General part information

928247 Series

3 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-928247-3	928247 Series

Color	Natural	Natural, Gray, Violet, Yellow, Blue, Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	2 - 11
Number of Rows	1	1
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

928247 Series

CONN RCPT HSG 5POS 5.00MM

Part	Contact Termination	Fastening Type	Mounting Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Note	Number of Rows	Contact Type	Pitch [x]	Pitch [x]	Color	Number of Positions
TE Connectivity AMP Connectors 6-928247-5	Crimp	Latch Lock	Free Hanging (In-Line)	Nylon, Polyamide (PA)	-40 °C	110 °C	Receptacle	Contacts Not Included	1	Female Socket	5 mm	0.197 in	Natural
TE Connectivity AMP Connectors 9-928247-4	Crimp	Latch Lock	Free Hanging (In-Line)		-40 °C	110 °C	Receptacle	Contacts Not Included	1	Female Socket	5 mm	0.197 in	Natural	4
TE Connectivity AMP Connectors 8-928247-2	Crimp	Latch Lock	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	-40 °C	110 °C	Receptacle	Contacts Not Included	1	Female Socket	5 mm	0.197 in	Gray	2
TE Connectivity AMP Connectors 5-928247-3	Crimp	Latch Lock	Free Hanging (In-Line)	Nylon, Polyamide (PA)	-40 °C	110 °C	Receptacle	Contacts Not Included	1	Female Socket	5 mm	0.197 in	Natural
TE Connectivity AMP Connectors 3-928247-4	Crimp	Latch Lock	Free Hanging (In-Line)				Receptacle	Contacts Not Included	1	Female Socket	5 mm	0.197 in	Violet	4
TE Connectivity AMP Connectors 928247-6	Crimp	Latch Lock	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	-40 °C	110 °C	Receptacle	Contacts Not Included	1	Female Socket	5 mm	0.197 in	Gray	6
TE Connectivity AMP Connectors 928247-3	Crimp	Latch Lock	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	-40 °C	110 °C	Receptacle	Contacts Not Included	1	Female Socket	5 mm	0.197 in	Yellow
TE Connectivity AMP Connectors 3-928247-5	Crimp	Latch Lock	Free Hanging (In-Line)	Nylon, Polyamide (PA)	-40 °C	110 °C	Receptacle	Contacts Not Included	1	Female Socket	5 mm	0.197 in	Blue
TE Connectivity AMP Connectors 1-928247-1	Crimp	Latch Lock	Free Hanging (In-Line)	Nylon, Polyamide (PA)	-40 °C	110 °C	Receptacle	Contacts Not Included	1	Female Socket	5 mm	0.197 in	Yellow	11
TE Connectivity AMP Connectors 4-928247-4	Crimp	Latch Lock	Free Hanging (In-Line)	Nylon, Polyamide (PA)	-40 °C	110 °C	Receptacle	Contacts Not Included	1	Female Socket	5 mm	0.197 in	Natural	4
