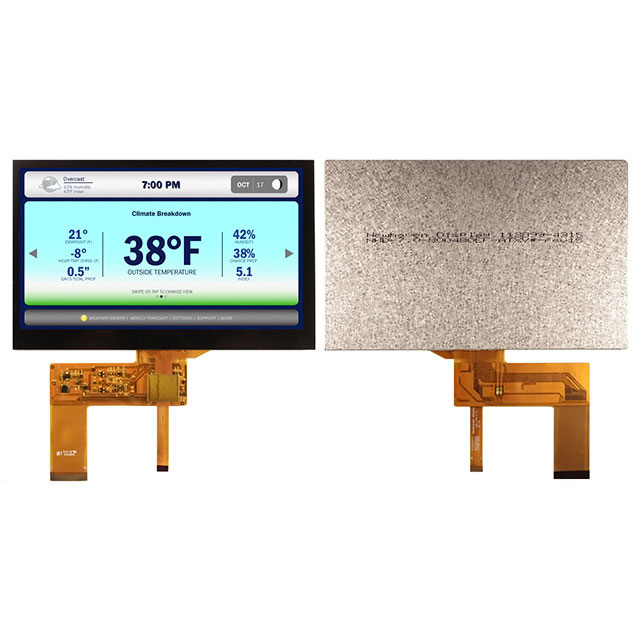

Specification	NHD-7.0-800480EF-ATXV#-CTP

Backlight Color	White
Backlight Type	LED
Diagonal Screen Size	7 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels (Horizontal)	800 pixels
Dot Pixels (Resolution)	WVGA
Dot Pixels (Vertical)	480 pixels
Graphics Color	Red, Green, Blue
Interface	Parallel
Interface Data Width	24 Bit
Touchscreen	Capacitive
Viewing Area Height	85.6 mm
Viewing Area Width	154.9 mm

NHD-7.0 Series

Part	Controller Type	Display Mode	Backlight Type	Backlight Color	Touchscreen	Display Type	Viewing Area Height	Viewing Area Width	Dot Pixels (Vertical)	Dot Pixels (Horizontal)	Interface	Diagonal Screen Size	Graphics Color	Dot Pixels (Resolution)	Interconnect System	Type	Function	Function Size	Utilized IC / Part	Platform	Contents	Interface Data Width
Newhaven Display Intl NHD-7.0-HDMI-N-RSXN-CTU	TFP401A	Transmissive	LED	White	Capacitive	TFT - Color	86.85 mm	156.7 mm	480 pixels	800 pixels	HDMI USB	7 in	Blue Green Red
Newhaven Display Intl NHD-7.0-HDMI-N-RSXN-RTU	TFP401A	Transmissive	LED	White	Resistive	TFT - Color	88.5 mm	156.7 mm	480 pixels	800 pixels	HDMI USB	7 in	Blue Green Red
Newhaven Display Intl NHD-7.0-800480FT-CSXV-T	FT812	Transmissive	LED	White	Resistive	TFT - Color	88.5 mm	156.7 mm	480 pixels	800 pixels	SPI	7 in	Blue Green Red	WVGA
Newhaven Display Intl NHD-7.0CTP-CAPE-N															BeagleBone Cape	Display	LCD Touchscreen	7 in	EK9716B NHD-7.0-800480EF-ASXN#-CTP	BeagleBone Black	Board
Newhaven Display Intl NHD-7.0-HDMI-N-RSXN	TFP401A	Transmissive	LED	White	Non-Touch	TFT - Color	89.1 mm	156.7 mm	480 pixels	800 pixels	HDMI	7 in	Blue Green Red
Newhaven Display Intl NHD-7.0-HDMI-N-RSXV-CTU	TFP401A	Transmissive	LED	White	Capacitive	TFT - Color	86.85 mm	156.7 mm	480 pixels	800 pixels	HDMI USB	7 in	Blue Green Red
Newhaven Display Intl NHD-7.0-800480EF-ATXL#-T		Transmissive	LED	White	Resistive	TFT - Color	88.52 mm	156.68 mm	480 pixels	800 pixels	Parallel	7 in	Blue Green Red	WVGA								24 Bit
Newhaven Display Intl NHD-7.0-800480MB-ATXL-T		Transmissive	LED	White	Resistive	TFT - Color	85.63 mm	153.84 mm	480 pixels	800 pixels	Parallel	7 in	Blue Green Red									24 Bit
Newhaven Display Intl NHD-7.0-800480MB-ASXN-T	EK73002 EK9716	Transmissive	LED	White	Resistive	TFT - Color	85.63 mm	153.84 mm	480 pixels	800 pixels	Parallel	7 in	Blue Green Red									24 Bit
Newhaven Display Intl NHD-7.0-HDMI-N-RTXL-CTU	TFP401A	Transmissive	LED	White	Capacitive	TFT - Color	86.85 mm	156.7 mm	480 pixels	800 pixels	HDMI USB	7 in	Blue Green Red
