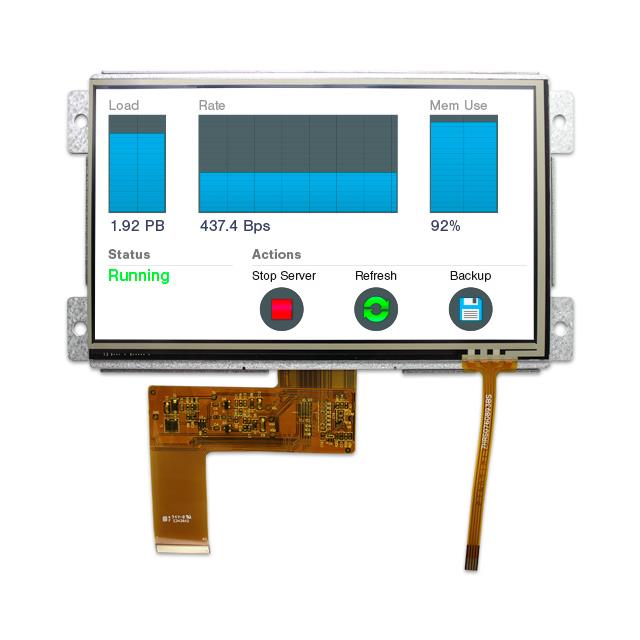

NHD-7.0-800480MB-ATXL-T

Obsolete

Newhaven Display Intl

7.0" MOUNTABLE STANDARD TFT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NHD-7.0-800480MB-ATXL-T

Obsolete

Newhaven Display Intl

7.0" MOUNTABLE STANDARD TFT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-7.0-800480MB-ATXL-T

Backlight	LED - White
Diagonal Screen Size	177.8 mm
Diagonal Screen Size	7 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels [x]	800
Dot Pixels [y]	480
Graphics Color	Green, Red, Blue
Interface	Parallel
Interface	24 Bit
Touchscreen	Resistive
Viewing Area [x]	153.84 mm
Viewing Area [y]	85.63 mm

NHD-7.0 Series

Part	Graphics Color	Backlight	Interface	Dot Pixels [y]	Dot Pixels [x]	Controller Type	Display Type	Display Mode	Diagonal Screen Size	Diagonal Screen Size	Touchscreen	Viewing Area [y]	Viewing Area [x]	Dot Pixels	Platform	Utilized IC / Part	Function	Function	Interconnect System	Type	Contents	Viewing Area [z]	Interface
Newhaven Display Intl NHD-7.0-HDMI-N-RSXN-CTU	Blue Green Red	LED - White	HDMI USB	480	800	TFP401A	TFT - Color	Transmissive	177.8 mm	7 in	Capacitive	86.85 mm	156.7 mm
Newhaven Display Intl NHD-7.0-HDMI-N-RSXN-RTU	Blue Green Red	LED - White	HDMI USB	480	800	TFP401A	TFT - Color	Transmissive	177.8 mm	7 in	Resistive	88.5 mm	156.7 mm
Newhaven Display Intl NHD-7.0-800480FT-CSXV-T	Blue Green Red	LED - White	SPI	480	800	FT812	TFT - Color	Transmissive	177.8 mm	7 in	Resistive	88.5 mm	156.7 mm	WVGA
Newhaven Display Intl NHD-7.0CTP-CAPE-N															BeagleBone Black	EK9716B NHD-7.0-800480EF-ASXN#-CTP	7 in	LCD Touchscreen	BeagleBone Cape	Display	Board(s)
Newhaven Display Intl NHD-7.0-800480EF-ATXL#-T	Blue Green Red	LED - White	Parallel	480	800		TFT - Color	Transmissive	177.8 mm	7 in	Resistive	156.68 mm		WVGA								88.52 mm	24 Bit
Newhaven Display Intl NHD-7.0-800480MB-ATXL-T	Blue Green Red	LED - White	Parallel	480	800		TFT - Color	Transmissive	177.8 mm	7 in	Resistive	85.63 mm	153.84 mm										24 Bit
Newhaven Display Intl NHD-7.0-HDMI-N-RSXV-RTU	Blue Green Red	LED - White	HDMI USB	480	800	TFP401A	TFT - Color	Transmissive	177.8 mm	7 in	Resistive	88.5 mm	156.7 mm
Newhaven Display Intl NHD-7.0-800480EF-ATXL#	Blue Green Red	LED - White	Parallel	480	800		TFT - Color	Transmissive	177.8 mm	7 in		85.92 mm	154.08 mm	WVGA									24 Bit
Newhaven Display Intl NHD-7.0-800480EF-ASXV#-CTP	Blue Green Red	LED - White	Parallel	480	800		TFT - Color	Transmissive	177.8 mm	7 in	Capacitive	86.85 mm	154.9 mm	WVGA									24 Bit
Newhaven Display Intl NHD-7.0-800480FT-CSXV-CTP	Blue Green Red	LED - White	SPI	480	800	FT813	TFT - Color	Transmissive	177.8 mm	7 in	Capacitive	86.85 mm	154.9 mm	WVGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NHD-7.0 Series

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 7" (177.80mm) 800 x 480

Documents

Technical documentation and resources
