2306-5111TG

Active

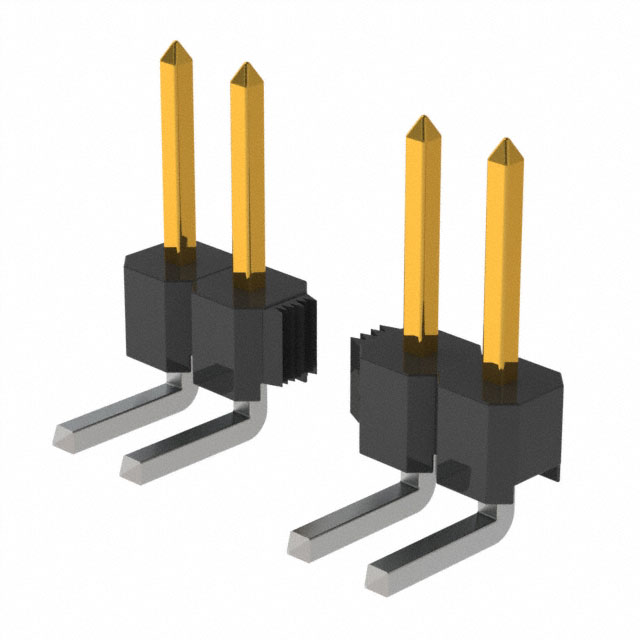

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

2306-5111TG

Active

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2306 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2306-5111TG	2306 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating	-	8.08 mm
Contact Length - Mating [x]	0.23 in	0.23 - 0.318 in
Contact Length - Post [x]	0.12 in	0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.45 - 0.538 "
Overall Contact Length	-	11.43 - 13.67 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating	-	2.54 mm
Row Spacing - Mating	-	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Kinked Pin, Solder

2306 Series

CONN HEADER VERT 6POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Number of Positions	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Number of Rows	Insulation Color	Termination	Style	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Connector Type	Shrouding	Material Flammability Rating	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]
3M 2306-6111-TG	10 çin	0.25 çm	Gold	Square	0.45 "	11.43 mm	2.54 µm	100 µin	Push-Pull	6	Through Hole	0.23 in	5.84 mm	Tin-Lead	0.1 in	2.54 mm	1	Black	Solder	Board to Board, Cable	0.12 in	3.05 mm	Male Pin	Header	Unshrouded	UL94 V-0	Copper Alloy	0.1 in	2.54 mm	All	3 A	105 ░C	-55 °C
3M 2306-5111TG	10 çin	0.25 çm	Gold	Square			2.54 µm	100 µin	Push-Pull	6	Through Hole, Right Angle	0.23 in	5.84 mm	Tin-Lead	0.1 in	2.54 mm	1	Black	Solder	Board to Board, Cable	0.12 in	3.05 mm	Male Pin	Header	Unshrouded	UL94 V-0	Copper Alloy	0.1 in	2.54 mm	All	3 A	105 ░C	-55 °C
3M 2306-6121-TG	10 çin	0.25 çm	Gold	Square	0.45 "	11.43 mm	2.54 µm	100 µin	Push-Pull	6	Through Hole	0.23 in	5.84 mm	Tin-Lead	0.1 in	2.54 mm	2	Black	Solder	Board to Board, Cable	0.12 in	3.05 mm	Male Pin	Header	Unshrouded	UL94 V-0	Copper Alloy	0.1 in	2.54 mm	All	3 A	105 ░C	-55 °C	2.54 mm	0.1 in
3M 2306-6221-TG	10 çin	0.25 çm	Gold	Square	0.538 "	13.67 mm	2.54 µm	100 µin	Push-Pull	6	Through Hole	0.318 "		Tin-Lead	0.1 in	2.54 mm	2	Black	Solder	Board to Board, Cable	0.12 in	3.05 mm	Male Pin	Header	Unshrouded	UL94 V-0	Copper Alloy	0.1 in	2.54 mm	All	3 A	105 ░C	-55 °C	2.54 mm	0.1 in	8.08 mm
3M 2306-6211-TP			Tin-Lead	Square	0.538 "	13.67 mm	2.54 µm	100 µin	Push-Pull	6	Through Hole	0.318 "		Tin-Lead	0.1 in	2.54 mm	1	Black	Solder	Board to Board, Cable	0.12 in	3.05 mm	Male Pin	Header	Unshrouded	UL94 V-0	Copper Alloy	0.1 in	2.54 mm	All	3 A	105 ░C	-55 °C			8.08 mm
3M 2306-6181TG	10 çin	0.25 çm	Gold	Square	0.45 "	11.43 mm	2.54 µm	100 µin	Push-Pull	6	Through Hole	0.23 in	5.84 mm	Tin-Lead	0.1 in	2.54 mm	2	Black	Kinked Pin, Solder	Board to Board, Cable	0.12 in	3.05 mm	Male Pin	Header	Unshrouded	UL94 V-0	Copper Alloy	0.1 in	2.54 mm	All	3 A	105 ░C	-55 °C	2.54 mm	0.1 in
