Q-0F04X000H009i

Active

Amphenol Custom Cable

COAX CABLE BNC TO TNC 9"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE BNC TO TNC 9"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector	Frequency - Max [Max]	Features	Length	Length	Length	2nd Contact Gender	2nd Connector Mounting Type	Cable Type	Color	1st Contact Gender	Overall Impedance	1st Connector	1st Connector Mounting Type	Style
Amphenol Custom Cable Q-0F04X000H048i	TNC Plug Right Angle	4 GHz	Shielded	1200 mm	4 ft	48 in	Male	Free Hanging (In-Line)	RG-142	Copper	Male	50 Ohms	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to TNC
Amphenol Custom Cable Q-0F04X000H1.5M	TNC Plug Right Angle	4 GHz	Shielded	1.5 m	4.9 ft	59.1 in	Male	Free Hanging (In-Line)	RG-142	Copper	Male	50 Ohms	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to TNC
Amphenol Custom Cable Q-0F04X000H009i	TNC Plug Right Angle	4 GHz	Shielded	228.6 mm		9 "	Male	Free Hanging (In-Line)	RG-142	Copper	Male	50 Ohms	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to TNC
Amphenol Custom Cable Q-0F04X000H012i	TNC Plug Right Angle	4 GHz	Shielded	304.8 mm		12 "	Male	Free Hanging (In-Line)	RG-142	Copper	Male	50 Ohms	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to TNC
Amphenol Custom Cable Q-0F04X000H003M	TNC Plug Right Angle	4 GHz	Shielded	3 m	9.8 '	118.1 in	Male	Free Hanging (In-Line)	RG-142	Copper	Male	50 Ohms	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to TNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

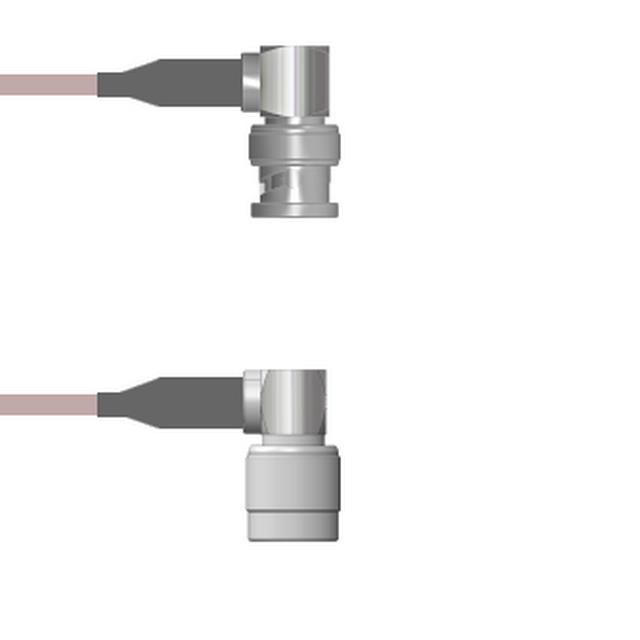

Cable Assembly Coaxial BNC to TNC RG-142 9.000" (228.60mm)

Technical documentation and resources

No documents available
