QME48T35120-NJB0G

Active

Bel Power Solutions

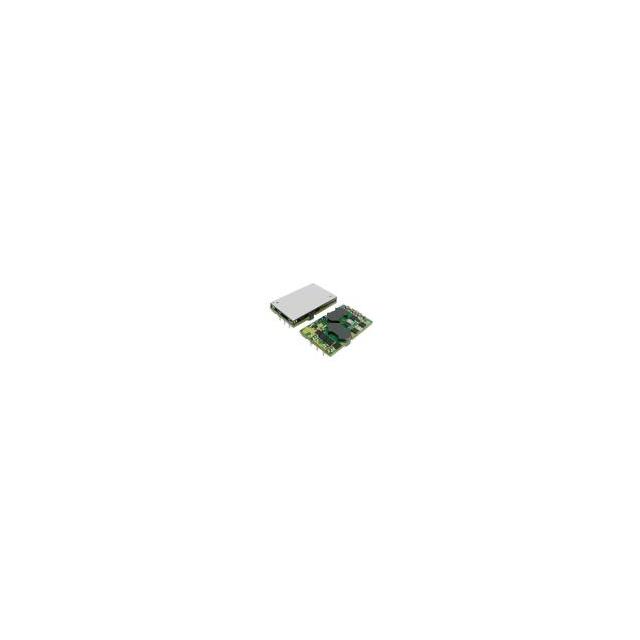

MODULE DC-DC 48VIN 1-OUT 12V 35A 420W 5-PIN QUARTER-BRICK

Deep-Dive with AI

Search across all available documentation for this part.

QME48T35120-NJB0G

Active

Bel Power Solutions

MODULE DC-DC 48VIN 1-OUT 12V 35A 420W 5-PIN QUARTER-BRICK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.67
		5	$ 89.95
		10	$ 89.23
		25	$ 83.48
		50	$ 80.60

Description

General part information

QME48T35120 Series

Isolated Module DC DC Converter 1 Output 12V 35A 36V - 75V Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QME48T35120-NJB0G	QME48T35120 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	35 A	35 A
Efficiency	95 %	95 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	5-DIP Module, 1/4 Brick	5-DIP Module, 1/4 Brick
Power (Watts)	420 W	420 W
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	0.43 "	0.43 - 0.5 in
Size / Dimension [z]	11 mm	11 - 12.7 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	12 V	12 V

QME48T35120 Series

DC DC CONVERTER 12V 420W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Control Features	Features	Mounting Type	Applications	Voltage - Output 1	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Power (Watts)	Package / Case	Number of Outputs	Type	Voltage - Isolation	Efficiency	Current - Output (Max) [Max]
Bel Power Solutions QME48T35120-PJBBG	0.5 in	58.4 mm	36.8 mm	12.6 mm	2.3 in	1.45 in	Active High, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	Through Hole	ITE (Commercial)	12 V	75 V	85 °C	-40 °C	36 V	420 W	1/4 Brick, 5-DIP Module	1	Isolated Module	1.5 kV	95 %	35 A
Bel Power Solutions QME48T35120-NJBBG	0.5 in	58.4 mm	36.8 mm	12.7 mm	2.3 in	1.45 in	Active Low, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	Through Hole	ITE (Commercial)	12 V	75 V	85 °C	-40 °C	36 V	420 W	1/4 Brick, 5-DIP Module	1	Isolated Module	1.5 kV	95 %	35 A
Bel Power Solutions QME48T35120-PJABG	0.5 in	58.4 mm	36.8 mm	12.7 mm	2.3 in	1.45 in	Active High, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	Through Hole	ITE (Commercial)	12 V	75 V	85 °C	-40 °C	36 V	420 W	1/4 Brick, 5-DIP Module	1	Isolated Module	1.5 kV	95 %	35 A
Bel Power Solutions QME48T35120-NJABG	0.5 in	58.4 mm	36.8 mm	12.7 mm	2.3 in	1.45 in	Active Low, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	Through Hole	ITE (Commercial)	12 V	75 V	85 °C	-40 °C	36 V	420 W	1/4 Brick, 5-DIP Module	1	Isolated Module	1.5 kV	95 %	35 A
Bel Power Solutions QME48T35120-NJB0G	0.43 "	58.4 mm	36.8 mm	11 mm	2.3 in	1.45 in	Active Low, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	Through Hole	ITE (Commercial)	12 V	75 V	85 °C	-40 °C	36 V	420 W	1/4 Brick, 5-DIP Module	1	Isolated Module	1.5 kV	95 %	35 A
Bel Power Solutions QME48T35120-PJA0G	0.43 "	58.4 mm	36.8 mm	11 mm	2.3 in	1.45 in	Active High, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	Through Hole	ITE (Commercial)	12 V	75 V	85 °C	-40 °C	36 V	420 W	1/4 Brick, 5-DIP Module	1	Isolated Module	1.5 kV	95 %	35 A
