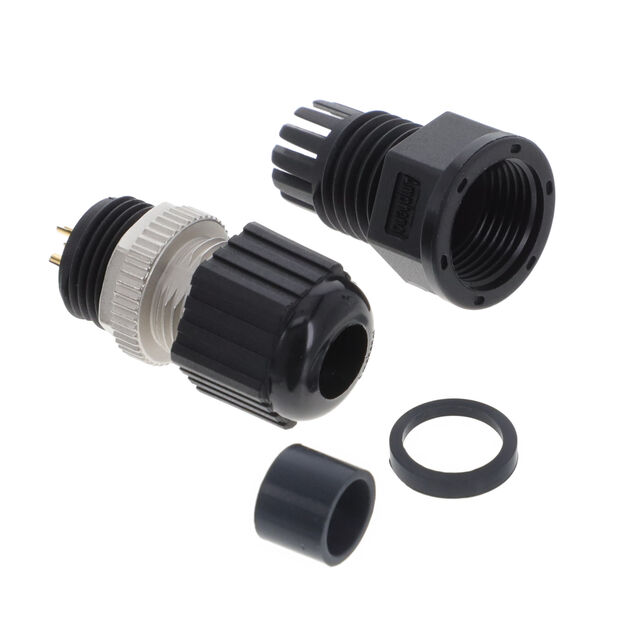

M12A-05BMMA-SL8001

Active

Amphenol LTW

SENSOR CONNECTOR, M SERIES, M12, MALE, 5 POSITIONS, SOLDER PIN, STRAIGHT CABLE MOUNT

Search across all available documentation for this part.

Active

Amphenol LTW

SENSOR CONNECTOR, M SERIES, M12, MALE, 5 POSITIONS, SOLDER PIN, STRAIGHT CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Insert Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Connector Type	Contact Finish - Mating	Backshell Material, Plating	Color	Shielding	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shell Finish	Features	Shell Size - Insert	Ingress Protection	Shell Material	Orientation	Primary Material	Current Rating (Amps)	Termination	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol LTW M12A-05BMMA-SL8001	Copper Alloy	Nylon Polyamide (PA)	4 mm	0.315 in	0.157 in	8 mm	Male Pins Receptacle	Gold	Nylon Polyamide (PA)	Black Silver	Unshielded	60 VDC	-40 °C	105 ░C	Free Hanging (In-Line)	Nickel	Backshell	M12-5	IP68 - Dust Tight Waterproof	Zinc Alloy	A	Metal
Amphenol LTW M12A-05BMMA-SR7001	Copper Alloy	Thermoplastic					Male Pins Plug	Gold	Thermoplastic	Black	Shielded	60 VDC	-40 °C	105 ░C	Free Hanging (In-Line) Right Angle		Backshell Coupling Nut	M12-5	IP67 - Dust Tight Waterproof		A	Plastic	4 A	Screw	4.5 mm 6.5 mm	0.177 in 0.256 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
