8162 060100

Active

Belden Inc.

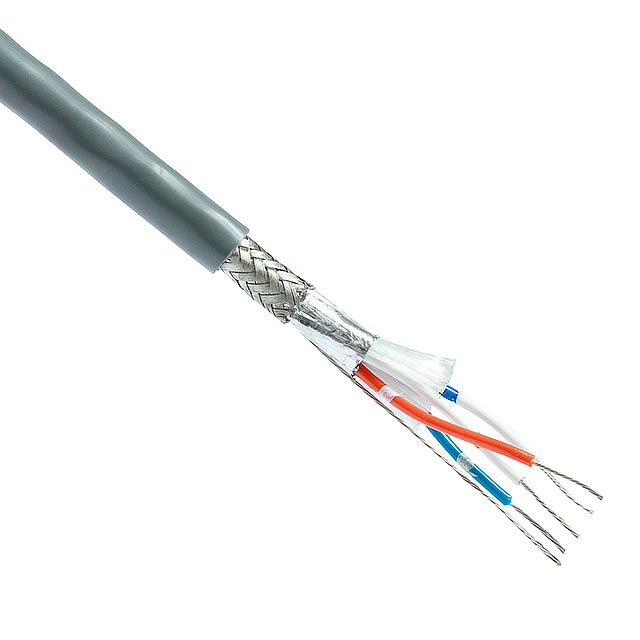

MULTI-PAIR 4CON 24AWG CHROM 100'

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4CON 24AWG CHROM 100'

Technical Specifications

Parameters and characteristics for this part

Specification	8162 060100

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter	0.343 in
Jacket (Insulation) Diameter	8.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 2493
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Jacket Color	Voltage	Usage	Cable Type	Length	Length	Shield Coverage	Conductor Material	Shield Material	Number of Conductors	Jacket (Insulation) Material	Ratings	Features	Wire Gauge	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 8162 0601000	0.048 in	1.219 mm	0.343 in	8.71 mm	Foam Polyethylene (FPE)	32 AWG	7	-40 °C	60 °C	Braid Foil	Chrome	300 V	Computer	Multi-Pair	1000 ft	304.8 m	65 % 100 %	Copper Tinned	Aluminum Copper Tinned	4	Poly-Vinyl Chloride (PVC)	UL Style 2493	Drain Wire	24 AWG
Belden Inc. 8162 060100	0.048 in	1.219 mm	0.343 in	8.71 mm	Foam Polyethylene (FPE)			-40 °C	60 °C	Braid Foil	Chrome		Computer	Multi-Pair			65 % 100 %	Copper Tinned	Aluminum Copper Tinned	4	Poly-Vinyl Chloride (PVC)	UL Style 2493	Drain Wire	24 AWG	30.5 m	100 ft	36 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
