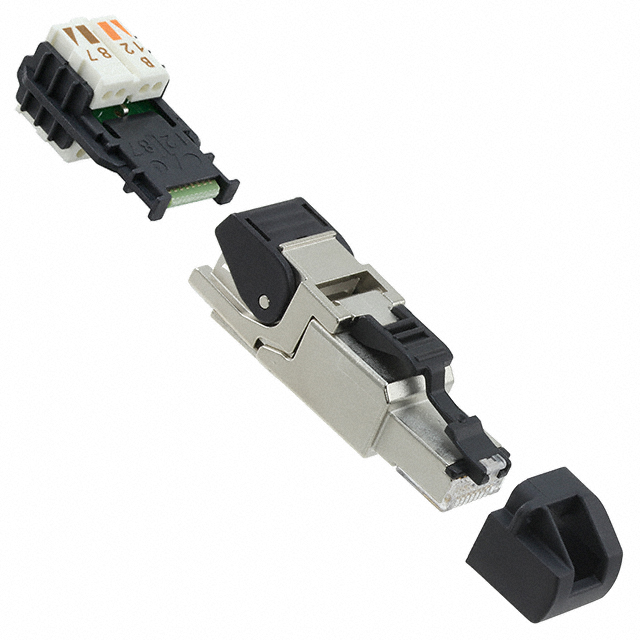

R301602 000S1
ActiveMODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), CAT6A, IP20, CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
R301602 000S1
ActiveMODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), CAT6A, IP20, CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R301602 000S1 |
|---|---|
| Cable Type | Round Cable, Solid, Stranded Wires |
| Color | Black Boot, Translucent - Clear |
| Connector Type | Plug |
| Current Rating (Amps) | 1.5 A |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Ratings | Cat6a |
| Shield Material | Zinc Die Cast |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R301602 Series
The R301602 000S1 is a 8-way DataTuff® Industrial Ethernet Category 6 Modular Plug suitable for use in IP20 unsealed installations. This ruggedized plug comes with nickel-plated zinc die-cast shielding and crimp termination. The plug is ideal for industrial Ethernet, harsh environments including 10BaseTX, 100BaseTX, 1000BaseT, 10GBASE-T and IBDN system 10GX applications.
