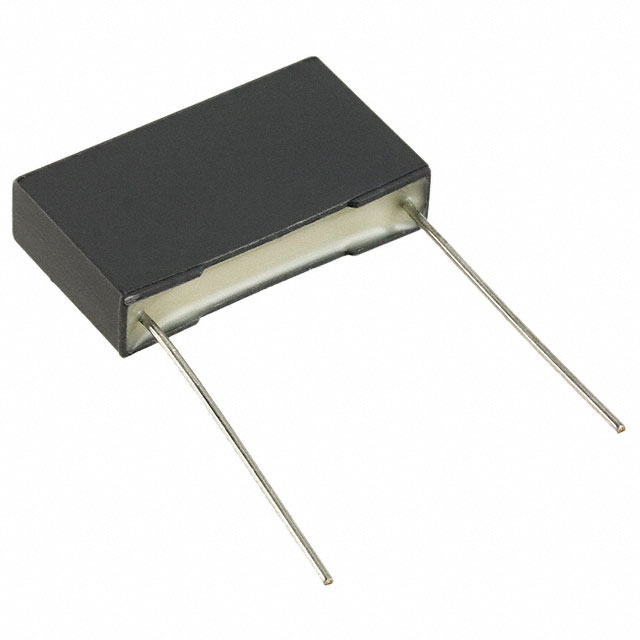

R463N31504001M

Active

KEMET

CAP FILM 0.15UF 20% 630VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R463N31504001M Spec

R463N31504001M

Active

KEMET

CAP FILM 0.15UF 20% 630VDC RAD

Deep-Dive with AI

DocumentsDatasheet R463N31504001M Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R463N31504001M

Applications	EMI, RFI Suppression
Capacitance	0.15 ÁF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	0.594 in
Height - Seated (Max) [Max]	15.1 mm
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	310 V

R463N Series

Part	Applications	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Capacitance	Ratings	Tolerance	Lead Spacing	Lead Spacing	Voltage Rating - AC	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R463N410040H1M	EMI RFI Suppression	Radial	Through Hole	1.043 in	26.5 mm	0.512 in	13 mm	0.87 in	22.1 mm	Metallized Polypropylene (PP)	1 µF	X2	20 %	22.5 mm	0.886 in	310 V	PC Pins	125 °C	-40 °C
KEMET R463N31504001M	EMI RFI Suppression	Radial	Through Hole	1.043 in	26.5 mm	0.236 in	6 mm			Metallized Polypropylene (PP)	0.15 ÁF	X2	20 %	22.5 mm	0.886 in	310 V	PC Pins	110 °C	-40 °C	0.594 in	15.1 mm
KEMET R463N333050N0K	EMI RFI Suppression	Radial	Through Hole	1.043 in	26.5 mm	0.236 in	6 mm			Metallized Polypropylene (PP)	0.33 µF	X2	10 %	22.5 mm	0.886 in	310 V	PC Pins	110 °C	-40 °C	0.594 in	15.1 mm
KEMET R463N368050M2K	EMI RFI Suppression	Radial	Through Hole	1.043 in	26.5 mm	0.394 in	10 mm	0.732 in	18.6 mm	Metallized Polypropylene (PP)	680 nF	X2	10 %	22.5 mm	0.886 in	310 V	PC Pins	110 °C	-40 °C
KEMET R463N410040N1M	EMI RFI Suppression	Radial	Through Hole	1.043 in	26.5 mm	0.433 in	11 mm			Metallized Polypropylene (PP)	1 µF	X2	20 %	22.5 mm	0.886 in	310 V	PC Pins	110 °C	-40 °C
KEMET R463N368000M2M	EMI RFI Suppression	Radial	Through Hole	1.043 in	26.5 mm	0.394 in	10 mm	0.732 in	18.6 mm	Metallized Polypropylene (PP)	680 nF	X2	20 %	22.5 mm	0.886 in	310 V	PC Pins	110 °C	-40 °C
KEMET R463N368040M2M	EMI RFI Suppression	Radial	Through Hole	1.043 in	26.5 mm	0.394 in	10 mm	0.732 in	18.6 mm	Metallized Polypropylene (PP)	680 nF	X2	20 %	22.5 mm	0.886 in	310 V	PC Pins	110 °C	-40 °C
KEMET R463N3150DQH1M	EMI RFI Suppression	Radial	Through Hole	1.043 in	26.5 mm	0.236 in	6 mm			Metallized Polypropylene (PP)	0.15 ÁF	X2	20 %	22.5 mm	0.886 in	310 V	PC Pins	125 °C	-40 °C	0.594 in	15.1 mm
KEMET R463N333000N0M	EMI RFI Suppression	Radial	Through Hole	1.043 in	26.5 mm	0.236 in	6 mm			Metallized Polypropylene (PP)	0.33 µF	X2	20 %	22.5 mm	0.886 in	310 V	PC Pins	110 °C	-40 °C	0.594 in	15.1 mm
KEMET R463N333040M1M	EMI RFI Suppression	Radial	Through Hole	1.043 in	26.5 mm	0.236 in	6 mm			Metallized Polypropylene (PP)	0.33 µF	X2	20 %	22.5 mm	0.886 in	310 V	PC Pins	110 °C	-40 °C	0.594 in	15.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.46
		10	$ 0.31
		50	$ 0.25
		100	$ 0.20
		500	$ 0.16
		1000	$ 0.14
Newark	Each	1000	$ 0.22
		2500	$ 0.20

Description

General part information

R463N Series

0.15 µF Film Capacitor 310V 630V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Datasheet

R463N31504001M Spec

Datasheet
