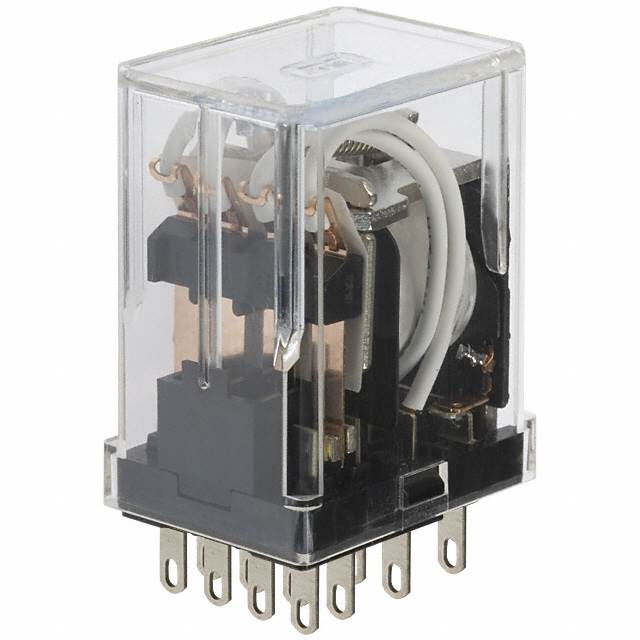

HC4-HL-AC100V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 100V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStandards Chart Datasheet +2

HC4-HL-AC100V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 100V

Deep-Dive with AI

DocumentsStandards Chart Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HC4-HL-AC100V

Approval Agency	VDE, CSA, UR
Coil Current	13.2 mA
Coil Resistance	7.58 kOhms
Coil Type	Non Latching
Coil Voltage	100 VAC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A
Features	Lighted Indicator
Load - Max Switching [Max]	1250 VA
Mounting Type	Socketable
Must Operate Voltage	80 VAC
Must Release Voltage	30 VAC
Operate Time	20 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-50 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC
Termination Style	Plug In

HC4-HL Series

Part	Mounting Type	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Switching Voltage	Features	Coil Type	Load - Max Switching [Max]	Relay Type	Release Time	Coil Resistance	Contact Rating (Current)	Contact Material	Operate Time	Approval Agency	Termination Style	Coil Voltage	Contact Form	Must Release Voltage
Panasonic Electric Works HC4-HL-AC12V	Socketable	100 mA	60 °C	-50 °C	9.6 VAC/DC	250 VAC	Lighted Indicator	Non Latching	1250 VA	General Purpose	20 ms	120 Ohms	5 A	Gold (Au) Silver Nickel (AgNi)	20 ms	CSA UR VDE	Plug In 14 Pin	12 VAC/DC	4PDT (4 Form C)	3.6 VAC
Panasonic Electric Works HC4-HL-AC115V	Socketable	11.4 mA	60 °C	-50 °C	92 VAC	250 VAC	Lighted Indicator	Non Latching	1250 VA	General Purpose	20 ms	10.09 kOhms	5 A	Gold (Au) Silver Nickel (AgNi)	20 ms	CSA UR VDE	Plug In	115 VAC	4PDT (4 Form C)	34.5 VAC
Panasonic Electric Works HC4-HL-DC24V	Socketable	37 mA	60 °C	-50 °C	19.2 VDC	250 VAC	Lighted Indicator	Non Latching	1250 VA	General Purpose	20 ms	650 Ohms	5 A	Gold (Au) Silver Nickel (AgNi)	20 ms	CSA UR VDE	Plug In	24 VDC	4PDT (4 Form C)	2.4 VDC
Panasonic Electric Works HC4-HL-DC110V	Socketable	10 mA	60 °C	-50 °C	88 VDC	250 VAC	Lighted Indicator	Non Latching	1250 VA	General Purpose	20 ms		5 A	Gold (Au) Silver Nickel (AgNi)	20 ms	CSA UR VDE	Plug In	110 VDC	4PDT (4 Form C)	11 VDC
Panasonic Electric Works HC4-HL-AC240V	Socketable	5 mA	60 °C	-50 °C	192 VAC	250 VAC	Lighted Indicator	Non Latching	1250 VA	General Purpose	20 ms	48 kOhms	5 A	Gold (Au) Silver Nickel (AgNi)	20 ms	CSA UR VDE	Plug In	240 VAC	4PDT (4 Form C)	72 VAC/DC
Panasonic Electric Works HC4-HL-AC100V	Socketable	13.2 mA	60 °C	-50 °C	80 VAC	250 VAC	Lighted Indicator	Non Latching	1250 VA	General Purpose	20 ms	7.58 kOhms	5 A	Gold (Au) Silver Nickel (AgNi)	20 ms	CSA UR VDE	Plug In	100 VAC	4PDT (4 Form C)	30 VAC
