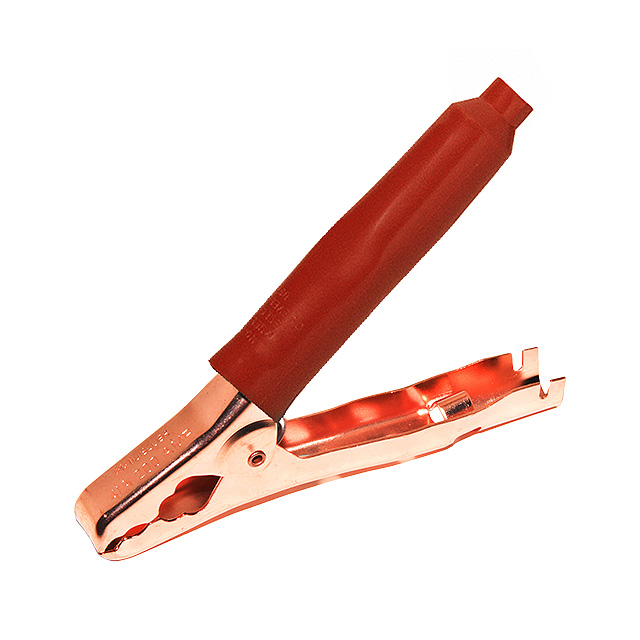

Specification	BU-41A-2

Color	Red
Current Rating	200 A
Insulation	Insulated Sleeve
Jaw Opening	1.625 in
Length	0.5 ft
Material	Steel
Material - Insulation	PVC, Poly-Vinyl Chloride
Plating	Copper
Quantity	1 Piece
Termination	Crimp or Screw
Type	Battery Terminal Clamp

BU-41 Series

Part	Connector Impedance	Overall Impedance	2nd Connector	Operating Temperature (Min)	Operating Temperature (Max)	1st Connector Mounting Type	2nd Contact Gender	Frequency - Max	1st Connector	2nd Connector Mounting Type	Features	1st Contact Gender	Cable Impedance	Length	Color	Style	Cable Type	Plating	Material - Insulation	Insulation	Jaw Opening	Termination	Type	Quantity	Material	Current Rating
Mueller Electric Co BU-4150029048	50 Ohms	50 Ohms	SMA Plug	-65 °C	150 °C	Free Hanging (In-Line)	Male	3 GHz	SMA Plug	Free Hanging (In-Line)	Shielded	Male	50 Ohms	48 in	Copper	SMA	316 RG
Mueller Electric Co BU-41A-2														0.5 ft	Red			Copper	Poly-Vinyl Chloride PVC	Insulated Sleeve	1.625 in	Crimp or Screw	Battery Terminal Clamp	1 Piece	Steel	200 A
Mueller Electric Co BU-4150029012	50 Ohms	50 Ohms	SMA Plug	-65 °C	150 °C	Free Hanging (In-Line)	Male	3 GHz	SMA Plug	Free Hanging (In-Line)	Shielded	Male	50 Ohms	12 in	Copper	SMA	316 RG
Mueller Electric Co BU-41A-0														0.5 ft	Black			Copper	Poly-Vinyl Chloride PVC	Insulated Sleeve	1.625 in	Crimp or Screw	Battery Terminal Clamp	1 Piece	Steel	200 A
Mueller Electric Co BU-4150028024	50 Ohms	50 Ohms	SMA Plug	-65 °C	150 °C	Free Hanging (In-Line)	Male	3 GHz	BNC Plug	Free Hanging (In-Line)	Shielded	Male	50 Ohms	24 in	Copper	BNC SMA	316 RG
Mueller Electric Co BU-4150029024	50 Ohms	50 Ohms	SMA Plug	-65 °C	150 °C	Free Hanging (In-Line)	Male	3 GHz	SMA Plug	Free Hanging (In-Line)	Shielded	Male	50 Ohms	24 in	Copper	SMA	316 RG
Mueller Electric Co BU-41CPN														0.5 ft	Natural					Non-Insulated	1.625 in	Crimp or Solder	Battery Terminal Clamp	1 Piece	Copper	400 A
Mueller Electric Co BU-4150028006	50 Ohms	50 Ohms	SMA Plug	-65 °C	150 °C	Free Hanging (In-Line)	Male	3 GHz	BNC Plug	Free Hanging (In-Line)	Shielded	Male	50 Ohms	0.5 ft	Copper	BNC SMA	316 RG
Mueller Electric Co BU-4150028048	50 Ohms	50 Ohms	SMA Plug	-65 °C	150 °C	Free Hanging (In-Line)	Male	3 GHz	BNC Plug	Free Hanging (In-Line)	Shielded	Male	50 Ohms	48 in	Copper	BNC SMA	316 RG
Mueller Electric Co BU-4150028012	50 Ohms	50 Ohms	SMA Plug	-65 °C	150 °C	Free Hanging (In-Line)	Male	3 GHz	BNC Plug	Free Hanging (In-Line)	Shielded	Male	50 Ohms	12 in	Copper	BNC SMA	316 RG
