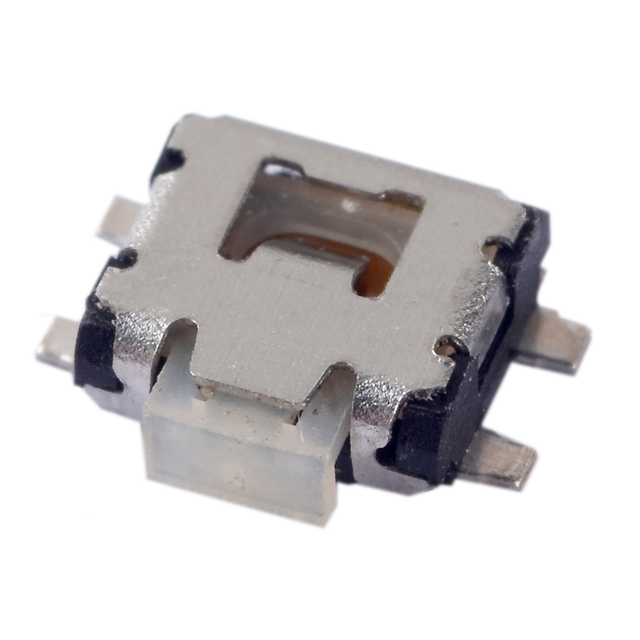

226EM1SABR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Features	Mechanical Life	Operating Force	Mounting Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Outline [x]	Outline [y]	Actuator Orientation	Actuator Type	Illumination	Switch Travel	Actuator Length, Right Angle	Circuit
CTS Electrocomponents 226EM1SABR	Gull Wing	Tactile Feedback	100000 Cycles	220 gf	Surface Mount, Right Angle	Off-Mom	85 °C	-40 °C	0.05 A, 12 VDC	4.7 mm	2.9 mm	Side Actuated	Rectangular Button	Non-Illuminated	0.2 mm	3.55 mm	SPST-NO
CTS Electrocomponents 226EM1SAAR	Gull Wing	Tactile Feedback	100000 Cycles		Surface Mount, Right Angle	Off-Mom	85 °C	-40 °C	0.05 A, 12 VDC	4.7 mm	2.9 mm	Side Actuated	Rectangular Button	Non-Illuminated	0.2 mm	3.55 mm	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10500	$ 0.16

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
